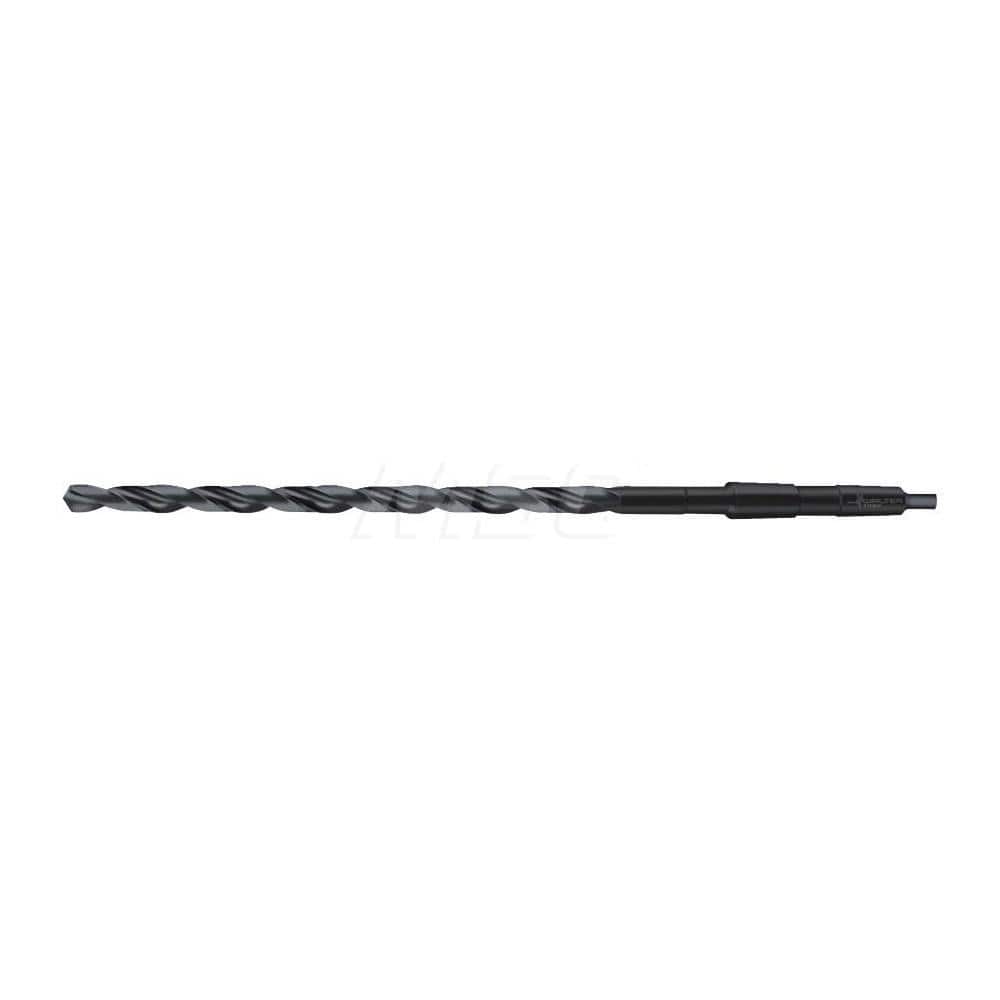

Taper Shank Drill Bit: 1.063″ Dia, 3MT, 118 °, High Speed Steel Oxide Finish, 12.0079″ Flute Length, 18.1102″ OAL, N Point, Spiral Flute
Item #: 53029906
Brand: Walter-Titex
Model #: 5066255
Product Specifications
| Drill Bit Size (mm) | 27.00 |
| Tool Material | High Speed Steel |
| Shank Taper Designation | 3MT |
| Overall Length (mm) | 460.00 |
| Coating/Finish | Oxide |
| Flute Type | Spiral |
| Drill Point Angle | 118 |
| Coolant Through | No |
| Point Type | N |
| Flute Length (mm) | 305.00 |
| Drill Bit Size (Decimal Inch) | 1.0630 |
| Flute Length (Decimal Inch) | 12.0079 |
| Spiral Type | Regular |
| Maximum Drilling Depth (Decimal Inch) | 10.9100 |
| Cutting Direction | Right Hand |
| Overall Length (Decimal Inch) | 18.1102 |
| Series | A4611 |
| Standards | DIN 1870-I |
| Tool Application | Through Hole Drilling; Blind Hole; Stack Drilling |
| Web Thinning | Web-Thinned |
| Drill Length Type | Extra Long |
| Flute Length x Diamter Ratio | 16xD |
| Drill Bit Diameter Tolerance | h8 |
