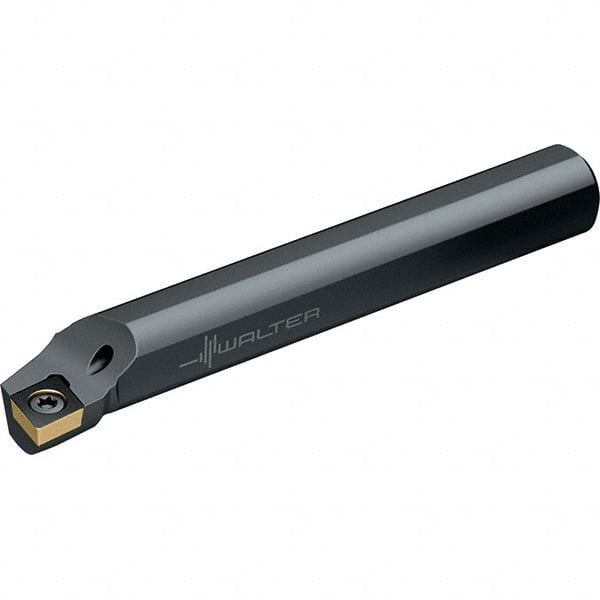

Walter - 40mm Min Bore Diam, 300mm OAL, 32mm Shank Diam, A-SCLC Indexable Boring Bar - CC.. 1204.. Insert, Screw Holding Method
Item #: 53032611
Brand: Walter
Model #: 5194505
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-SCLC |
| Series | Walter Turn |
| Minimum Bore Diameter (mm) | 40.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.5748 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 300.00 |
| Overall Length (Decimal Inch) | 11.8110 |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Insert Compatibility | CC.. 1204.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Center to Cutting Edge (mm) | 22.00 |
| Center to Cutting Edge (Decimal Inch) | 0.8661 |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (mm) | 12.70 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Complete Insert Compatibility | CCGT 120402-PM2; CCGT 120404-PF2; CCGT 120404-PM2; CCGT 120408-PF2; CCGT 120408-PM2; CCMT 120404-PF4; CCMT 120404-PM; CCMT 120404-PM5; CCMT 120404-PS5; CCMT 120408-PF4; CCMT 120408-PM; CCMT 120408-PM4; CCMT 120408-PM5; CCMT 120408-PS5; CCMT 120412-PM; CCM |
| Toolholder Material | Steel |
