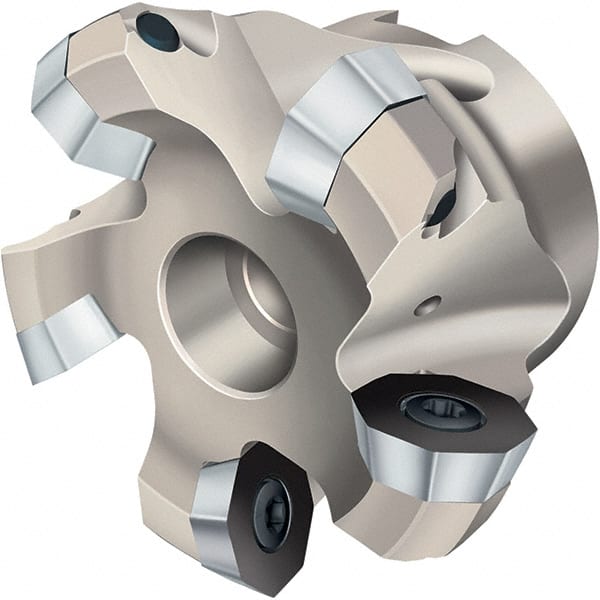

Walter - 125mm Cut Diam, 40mm Arbor Hole, 8mm Max Depth of Cut, Indexable Chamfer & Angle Face Mill - 10 Inserts, OD . . 0504 . . Insert, Right Hand Cut, 10 Flutes, Through Coolant, Series Xtra-tec
Item #: 53033189
Brand: Walter
Model #: 5402991
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 125.00 |
| Cutting Diameter (Decimal Inch) | 4.9213 |
| Arbor Hole Diameter (mm) | 40.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.5748 |
| Overall Height (Decimal Inch) | 2.4803 |
| Overall Height (mm) | 63.00 |
| Insert Compatibility | OD . . 0504 . . |
| Series | Xtra-tec |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Number of Cutter Inserts | 10 |
| Insert Holding Method | Screw |
| Cutter Style | F4080 |
| Number of Flutes | 10 |
| Keyway Width (mm) | 10.00 |
| Keyway Width (Decimal Inch) | 0.3937 |
| Maximum RPM | 10000 |
| Cutting Direction | Right Hand |
| Maximum Insert Radius (Decimal Inch) | 0.0472 |
| Complete Insert Compatibility | ODHT 050408-F57; ODHT 050408-G88; ODHT 0504ZZN-F57; ODHT 0504ZZN-G88; ODHW 050408-A57; ODHW 050412-A57; ODHW 0504ZZN-A57; ODHX 0504ZZR-A57; ODMT 050408-D57; ODMT 0504ZZN-D57; ODMW 050408-A57; ODMW 050408T-A27 |
