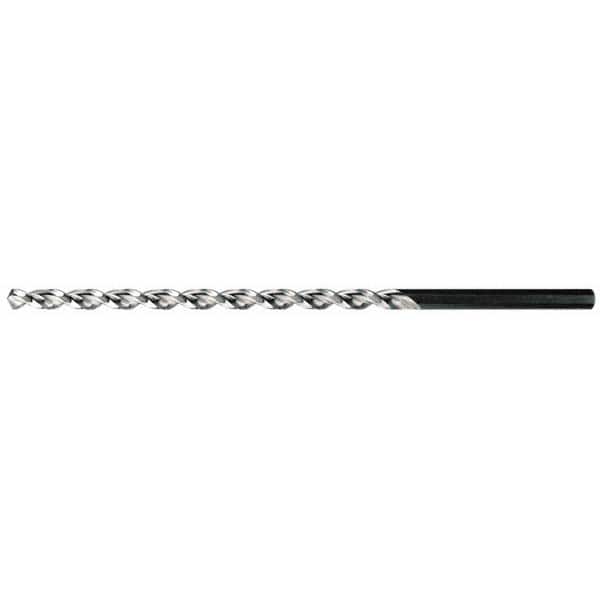

Walter-Titex - 3.8mm 130° 2-Flute High Speed Steel Extra Length Drill Bit
Item #: 51803195
Brand: Walter-Titex
Model #: 5062578
Features and Benefits
High speed steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 3.80 |
| Drill Bit Size (Decimal Inch) | 0.1496 |
| Drill Point Angle | 130 |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish/Coating | Bright |
| Overall Length (mm) | 175.00 |
| Through Coolant | NonCoolant Through |
| Shank Diameter (mm) | 3.80 |
| Flute Length (mm) | 120.00 |
| Flute Length (Decimal Inch) | 4.7244 |
| Cutting Direction | Right Hand |
| Flute Type | Parabolic |
| Number of Flutes | 2 |
| Point Type | UFL |
| Shank Type | Straight |
| Specification Designation | DIN |
| Threaded Shank | No |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (Decimal Inch) | +0.00000 to -0.00071 |
| Drill Bit Diameter Tolerance (mm) | +0.000 to -0.018 |
| Web Thinning | Web-Thinned |
| Material Grade | M2 |
| Series/List | A1622 |
