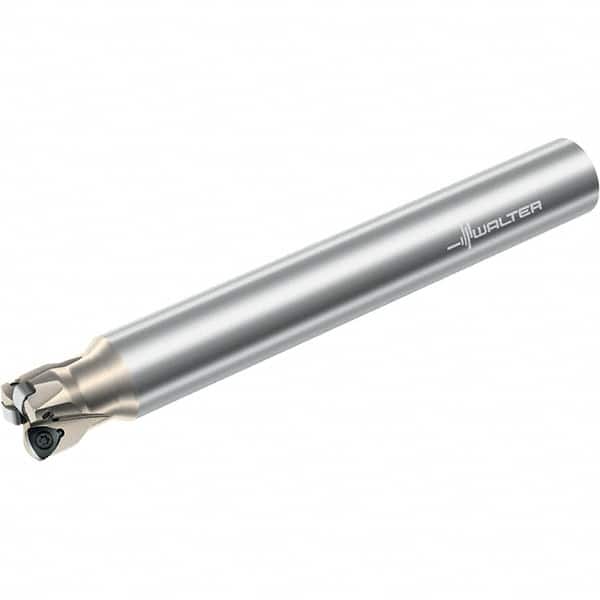

Walter - 21° Lead Angle, 1-1/4" Max Cut Diam, 0.793" Min Cut Diam, 0.039" Max Depth of Cut, Indexable Chamfer & Angle End Mill - 3 Inserts, P23696 Insert Style, 10" OAL, Through Coolant, Straight Shank
Item #: 53033528
Brand: Walter
Model #: 5873916
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 0.0390 |
| Shank Type | Cylindrical Shank |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Cutter Inserts | 3 |
| Insert Style | P23696 |
| Toolholder Style | F4030 |
| Insert Holding Method | Screw |
| Weldon Flat | No |
| Number of Flutes | 3 |
| Minimum Cutting Diameter (Decimal Inch) | 0.7930 |
| Through Coolant | Coolant Through |
| Maximum Cutting Diameter (Decimal Inch) | 1.2500 |
| Overall Length (Decimal Inch) | 10.0000 |
| Series | Xtra-tec |
| Lead Angle | 21 |
