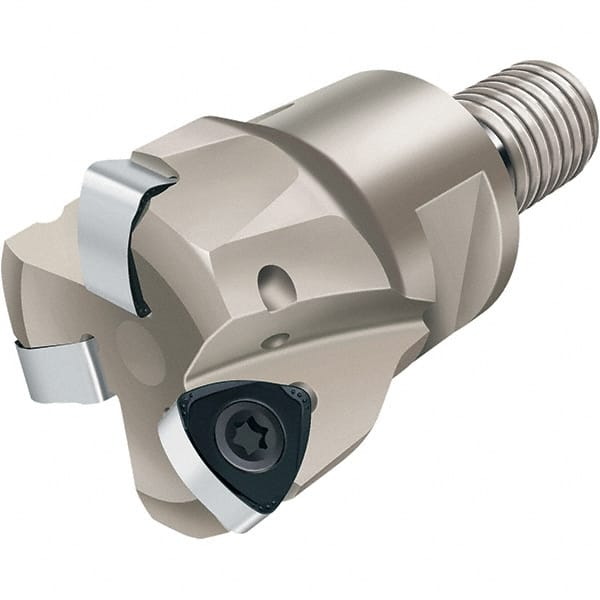

Walter - 21° Lead Angle, 35mm Max Cut Diam, 23.4mm Min Cut Diam, 1mm Max Depth of Cut, Indexable Chamfer & Angle End Mill - 3 Inserts, P23696 Insert Style, 69mm OAL, Through Coolant, Threaded Shank
Item #: 53033551
Brand: Walter
Model #: 5873874
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 35.00 |
| Maximum Depth of Cut (mm) | 1.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0394 |
| Shank Type | Modular Connection |
| Shank Diameter (mm) | 28.00 |
| Modular Connection Size | T28 |
| Number of Cutter Inserts | 3 |
| Insert Style | P23696 |
| Toolholder Style | F4030 |
| Insert Holding Method | Screw |
| Number of Flutes | 3 |
| Minimum Cutting Diameter (Decimal Inch) | 0.9213 |
| Through Coolant | Coolant Through |
| Head Length (Decimal Inch) | 1.5748 |
| Maximum Cutting Diameter (Decimal Inch) | 1.3780 |
| Overall Length (mm) | 69.00 |
| Overall Length (Decimal Inch) | 2.7165 |
| Series | ScrewFit; Xtra-tec |
| Lead Angle | 21 |
| Head Length (mm) | 40.00 |
