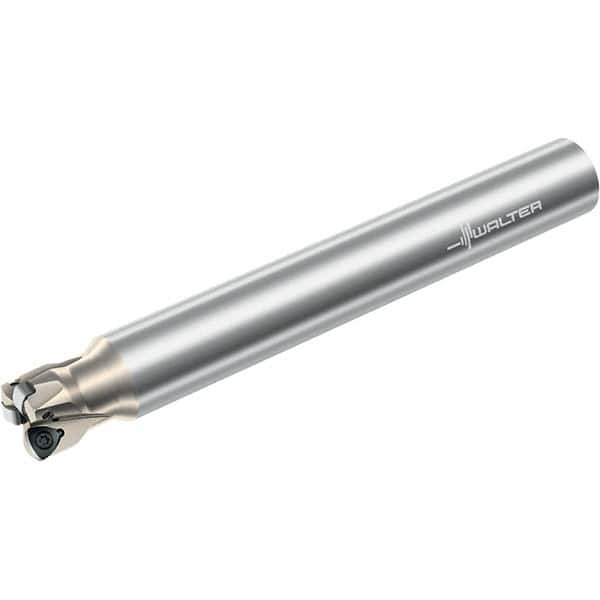

Walter - 21° Lead Angle, 1-1/4" Max Cut Diam, 0.793" Min Cut Diam, 0.039" Max Depth of Cut, Indexable Chamfer & Angle End Mill - 3 Inserts, P23696 Insert Style, 4.37" OAL, Through Coolant, Weldon Flat
Item #: 53035721
Brand: Walter
Model #: 5873913
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 0.0390 |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Cutter Inserts | 3 |
| Insert Style | P23696 |
| Toolholder Style | F4030 |
| Insert Holding Method | Screw |
| Weldon Flat | Yes |
| Number of Flutes | 3 |
| Minimum Cutting Diameter (Decimal Inch) | 0.7930 |
| Through Coolant | Coolant Through |
| Head Length (Decimal Inch) | 2.0900 |
| Maximum Cutting Diameter (Decimal Inch) | 1.2500 |
| Overall Length (Decimal Inch) | 4.3700 |
| Series | Xtra-tec |
| Lead Angle | 21 |
