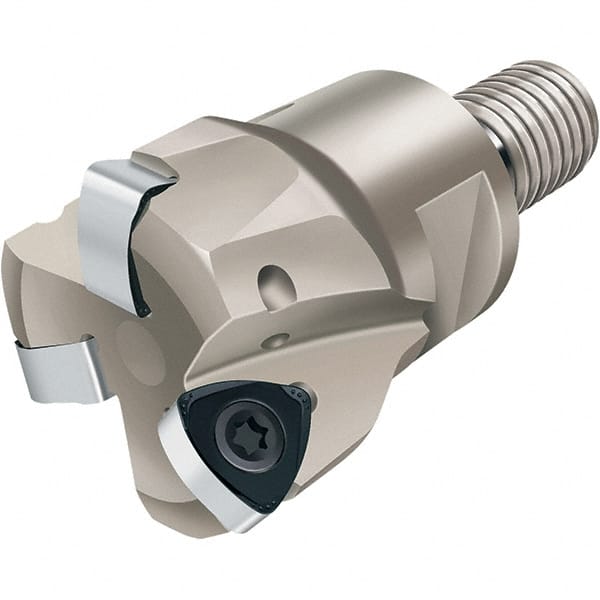

Walter - 21° Lead Angle, 50mm Max Cut Diam, 32mm Min Cut Diam, 2mm Max Depth of Cut, Indexable Chamfer & Angle End Mill - 4 Inserts, P23696 Insert Style, 80mm OAL, Through Coolant, Threaded Shank
Item #: 53035770
Brand: Walter
Model #: 5882898
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.00 |
| Maximum Depth of Cut (mm) | 2.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Shank Type | Modular Connection |
| Modular Connection Size | T45 |
| Number of Cutter Inserts | 4 |
| Insert Style | P23696 |
| Toolholder Style | F4030 |
| Insert Holding Method | Screw |
| Number of Flutes | 4 |
| Minimum Cutting Diameter (Decimal Inch) | 1.2598 |
| Through Coolant | Coolant Through |
| Head Length (Decimal Inch) | 1.7717 |
| Maximum Cutting Diameter (Decimal Inch) | 1.9685 |
| Overall Length (mm) | 80.00 |
| Overall Length (Decimal Inch) | 3.1496 |
| Series | ScrewFit; Xtra-tec |
| Lead Angle | 21 |
| Head Length (mm) | 45.00 |
