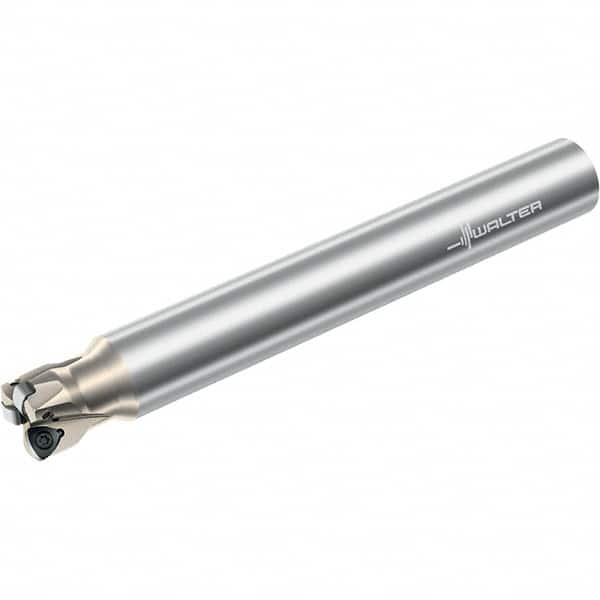

Walter - 21° Lead Angle, 25mm Max Cut Diam, 13.4mm Min Cut Diam, 1mm Max Depth of Cut, Indexable Chamfer & Angle End Mill - 2 Inserts, P23696 Insert Style, 200mm OAL, Through Coolant, Straight Shank
Item #: 53035796
Brand: Walter
Model #: 5894508
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Maximum Depth of Cut (mm) | 1.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0394 |
| Shank Type | Cylindrical Shank |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Number of Cutter Inserts | 2 |
| Insert Style | P23696 |
| Toolholder Style | F4030 |
| Insert Holding Method | Screw |
| Weldon Flat | No |
| Number of Flutes | 2 |
| Minimum Cutting Diameter (Decimal Inch) | 0.5276 |
| Through Coolant | Coolant Through |
| Head Length (Decimal Inch) | 1.3780 |
| Maximum Cutting Diameter (Decimal Inch) | 0.9843 |
| Overall Length (mm) | 200.00 |
| Overall Length (Decimal Inch) | 7.8740 |
| Series | Xtra-tec |
| Lead Angle | 21 |
| Head Length (mm) | 35.00 |
