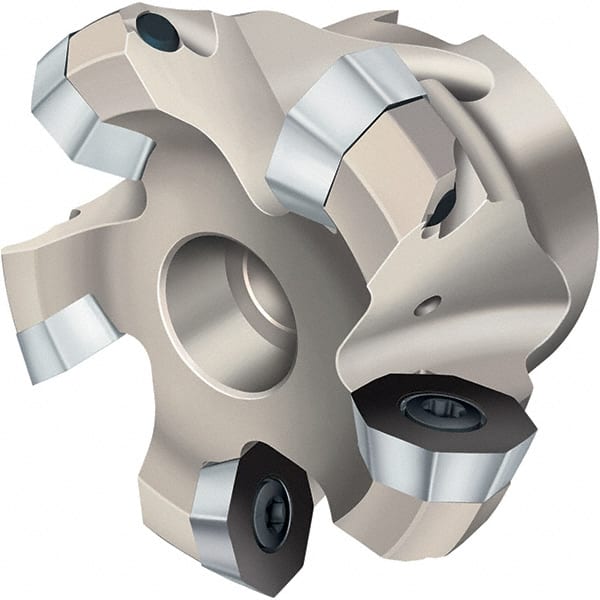

Walter - 125mm Cut Diam, 40mm Arbor Hole, 10mm Max Depth of Cut, Indexable Chamfer & Angle Face Mill - 8 Inserts, OD.. 0605.. Insert, Right Hand Cut, 8 Flutes, Through Coolant, Series Xtra-tec
Item #: 53036000
Brand: Walter
Model #: 5159884
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 125.00 |
| Cutting Diameter (Decimal Inch) | 4.9213 |
| Arbor Hole Diameter (mm) | 40.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.5748 |
| Overall Height (Decimal Inch) | 2.4803 |
| Overall Height (mm) | 63.00 |
| Insert Compatibility | OD.. 0605.. |
| Series | Xtra-tec |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Screw |
| Cutter Style | F4080 |
| Number of Flutes | 8 |
| Keyway Width (mm) | 10.00 |
| Keyway Width (Decimal Inch) | 0.3937 |
| Maximum RPM | 10000 |
| Cutting Direction | Right Hand |
| Maximum Insert Radius (Decimal Inch) | 0.0630 |
| Complete Insert Compatibility | ODHT 060512-F57; ODHT 060512-G88; ODHT 0605ZZN-F57; ODHT 0605ZZN-G88; ODHW 060512-A57; ODHW 060516-A57; ODHW 0605ZZN-A57; ODHX 0605ZZR-A57; ODMT 060512-D57; ODMT 0605ZZN-D57; ODMW 060508-A57; ODMW 060508T-A27 |
