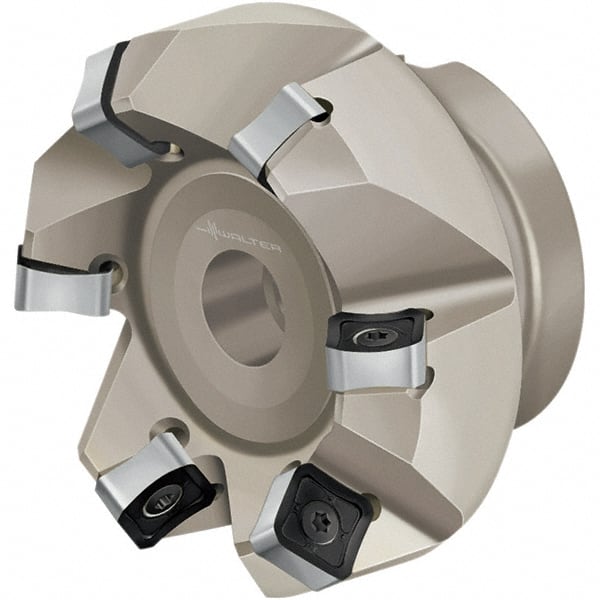

Walter - 80mm Cut Diam, 27mm Arbor Hole, 9mm Max Depth of Cut, Indexable Chamfer & Angle Face Mill - 6 Inserts, SN . X 1606 . . Insert, Right Hand Cut, 6 Flutes, Through Coolant, Series Xtra-tec
Item #: 53036224
Brand: Walter
Model #: 5535532
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 80.00 |
| Cutting Diameter (Decimal Inch) | 3.1496 |
| Arbor Hole Diameter (mm) | 27.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.0630 |
| Overall Height (Decimal Inch) | 2.4803 |
| Overall Height (mm) | 63.00 |
| Insert Compatibility | SN . X 1606 . . |
| Series | Xtra-tec |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 9.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3543 |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Cutter Style | F4033 |
| Number of Flutes | 6 |
| Keyway Width (mm) | 7.00 |
| Keyway Width (Decimal Inch) | 0.2756 |
| Cutting Direction | Right Hand |
| Maximum Insert Radius (Decimal Inch) | 0.1575 |
| Complete Insert Compatibility | SNGX 1606ANN-D27; SNGX 1606ANN-F27; SNGX 1606ANN-F57; SNGX 1606ANN-F67; SNMX160620-D27; SNMX160620-F27; SNMX160620-F57; SNMX160620-F67; SNMX160640-D27; SNMX160640-F27; SNMX160640-F57; SNMX160640-F67 |
