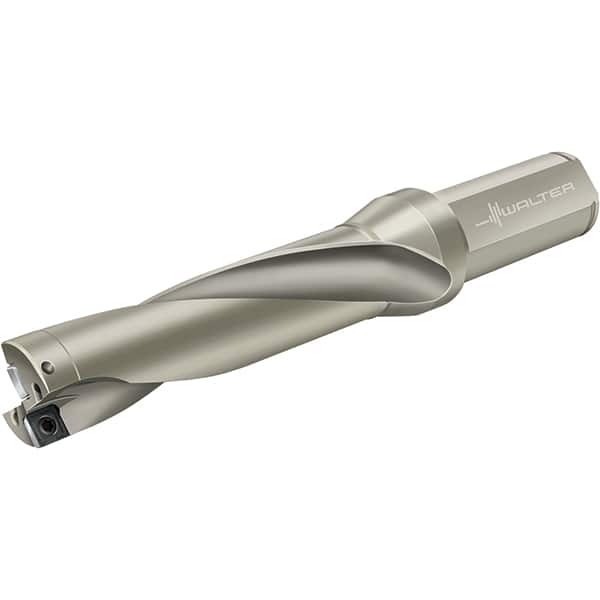

Walter - 208mm Max Drill Depth, 4xD, 52mm Diam, Indexable Insert Drill - 2 Inserts, 40mm Shank Diam, Flange Shank
Item #: 53037065
Brand: Walter
Model #: 5682317
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | B4214 |
| Drill Diameter (mm) | 52.00 |
| Drill Diameter (Decimal Inch) | 2.0472 |
| Maximum Drill Depth (mm) | 208.00 |
| Maximum Drill Depth (Decimal Inch) | 8.1890 |
| Shank Type | Flange |
| Shank Diameter (mm) | 40.00 |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Insert Size (Decimal Inch) | 0.1790; 0.1930; 0.2170; 0.2340; 0.2560; 0.2760; 0.3070; 0.3310; 0.3760; 0.4050; 0.4630; 0.4820; 0.5520; 0.5780; 0.6500; 0.6890 |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (mm) | 318.00 |
| Overall Length/Projection (Decimal Inch) | 12.5197 |
| Insert Compatibility | P4840C-.R-E67; P4841C-.R-A57; P4841C-.R-E57 |
| Body Length (Decimal Inch) | 9.7638 |
| Body Length (mm) | 248.00 |
| Shank Length (mm) | 70.00 |
| Shank Length (Decimal Inch) | 2.7559 |
| Collar Diameter (mm) | 50.00 |
| Collar Diameter (Decimal Inch) | 1.9685 |
| Series | Xtra-tec |
