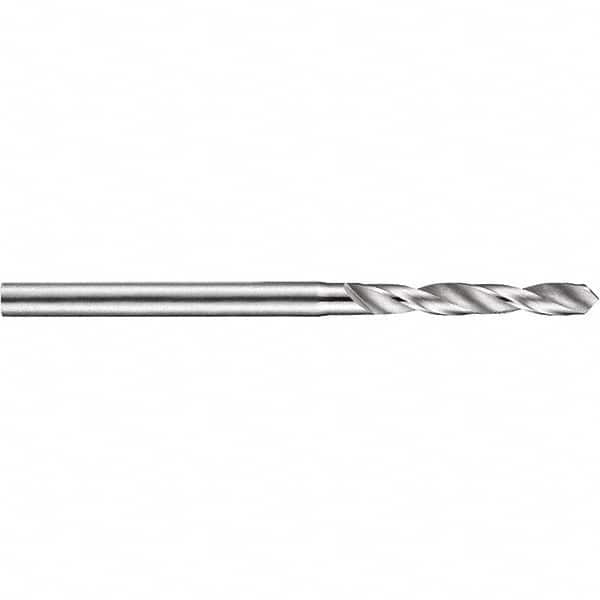

DORMER - 0.5mm, 118° Point, Cobalt Micro Drill Bit - Exact Tooling

DORMER - 0.5mm, 118° Point, Cobalt Micro Drill Bit


Item #: 69359354
Brand: DORMER
Model #: 0045114

Features and Benefits

Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Spiral flute reamers are used in blind and through-hole operations. They are used to bridge interrupted cuts.
Regular, also known as medium spiral bits, are used in general purpose applications. They are used on soft, nonferrous materials.
Straight shanks are used for general purpose applications. The shank is smaller than the drill bit diameter. They are used with portable drills and drill presses on ferrous and non-ferrous materials.
Product Specifications
Drill Bit Size (Decimal Inch) 0.0197
Drill Bit Size (mm) 0.50
Shank Diameter (mm) 1.00
Drill Point Angle 118
Drill Bit Material Cobalt
Drill Bit Finish/Coating Bright
Cutting Direction Right Hand
Overall Length (mm) 25.00
Overall Length (Decimal Inch) 0.9850
Flute Length (mm) 4.00
Flute Length (Decimal Inch) 0.1576
Through Coolant No
Flute Type Spiral
Spiral Type Regular Spiral
Shank Type Straight
Web Configuration Tapered
Specification Number DIN 1899
Series/List A720
$ 23.47
