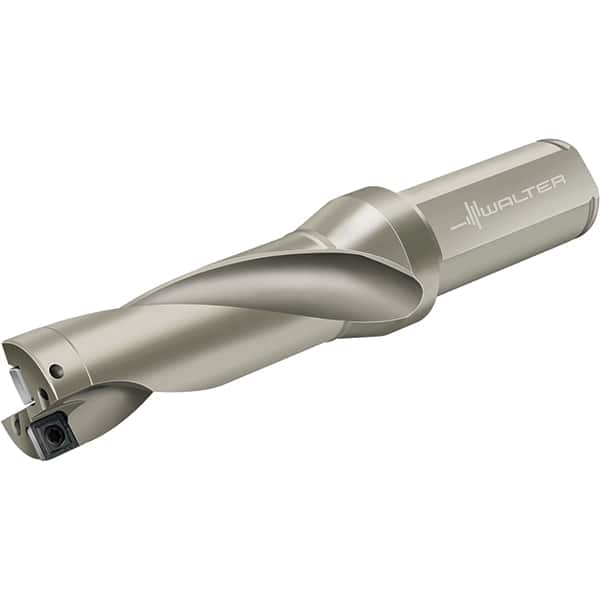

Walter - 64.5mm Max Drill Depth, 3xD, 21.5mm Diam, Indexable Insert Drill - 2 Inserts, 25mm Shank Diam, Flange Shank
Item #: 53038238
Brand: Walter
Model #: 5513431
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | B4213 |
| Drill Diameter (mm) | 21.50 |
| Drill Diameter (Decimal Inch) | 0.8465 |
| Maximum Drill Depth (mm) | 64.50 |
| Maximum Drill Depth (Decimal Inch) | 2.5394 |
| Shank Type | Flange |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Insert Size (Decimal Inch) | 0.1790; 0.1930; 0.2170; 0.2340; 0.2560; 0.2760; 0.3070; 0.3310; 0.3760; 0.4050; 0.4630; 0.4820; 0.5520; 0.5780; 0.6500; 0.6890 |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (mm) | 146.00 |
| Overall Length/Projection (Decimal Inch) | 5.7480 |
| Insert Compatibility | P4840C-.R-E67; P4841C-.R-A57; P4841C-.R-E57 |
| Body Length (Decimal Inch) | 3.5433 |
| Body Length (mm) | 90.00 |
| Shank Length (mm) | 56.00 |
| Shank Length (Decimal Inch) | 2.2047 |
| Collar Diameter (mm) | 32.00 |
| Collar Diameter (Decimal Inch) | 1.2598 |
| Series | Xtra-tec |
