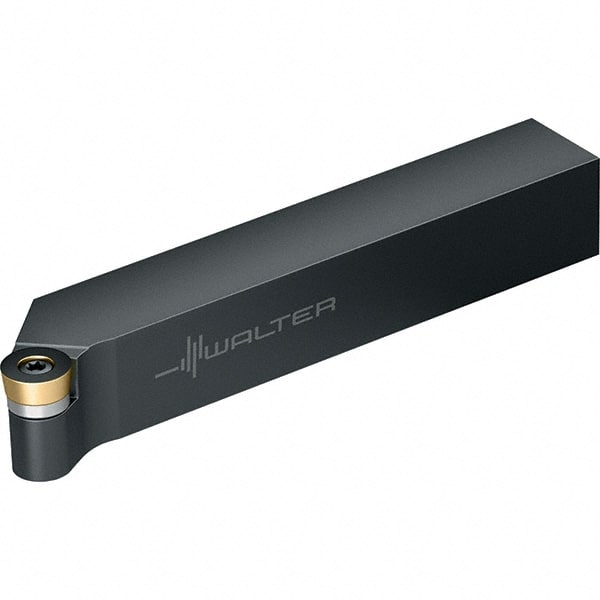

Walter - RH SRSC Neutral Rake Indexable Turning Toolholder
Item #: 53049870
Brand: Walter
Model #: 5335826
Product Specifications
| Hand of Holder | Right Hand |
| Toolholder Style | SRSC |
| Rake | Neutral |
| Series | Walter Turn |
| Shank Width (mm) | 25.00 |
| Shank Width (Decimal Inch) | 0.9843 |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Insert Compatibility | RC.T 0602.. |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (mm) | 32.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2598 |
| Head Length (mm) | 20.00 |
| Head Length (Decimal Inch) | 0.7874 |
| Insert Inscribed Circle (Decimal Inch) | 0.2362 |
