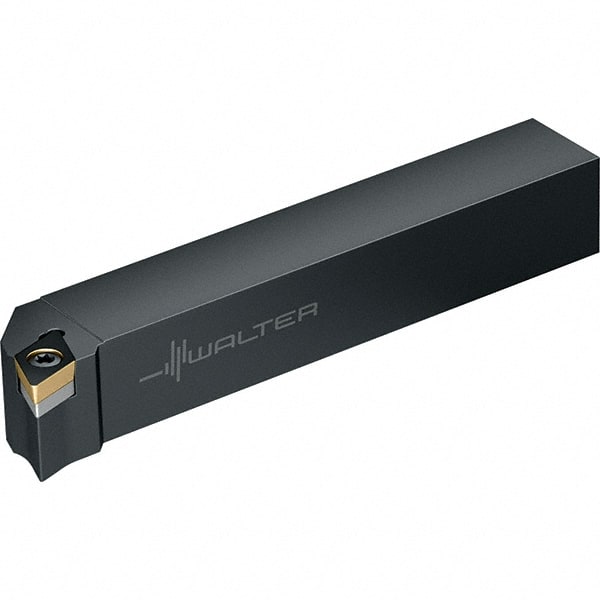

Walter - LH SDHC Neutral Rake Indexable Turning Toolholder
Item #: 53049946
Brand: Walter
Model #: 5335793
Product Specifications
| Hand of Holder | Left Hand |
| Toolholder Style | SDHC |
| Rake | Neutral |
| Series | Walter Turn |
| Shank Width (mm) | 16.00 |
| Shank Width (Decimal Inch) | 0.6299 |
| Shank Height (mm) | 16.00 |
| Shank Height (Decimal Inch) | 0.6299 |
| Overall Length (mm) | 100.00 |
| Overall Length (Decimal Inch) | 3.9370 |
| Insert Compatibility | DC.. 11T3.. |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (mm) | 20.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7874 |
| Head Length (mm) | 17.90 |
| Head Length (Decimal Inch) | 0.7047 |
| Insert Inscribed Circle (Decimal Inch) | 0.3748 |
| Insert Width (mm) | 11.60 |
| Insert Width (Decimal Inch) | 0.4567 |
