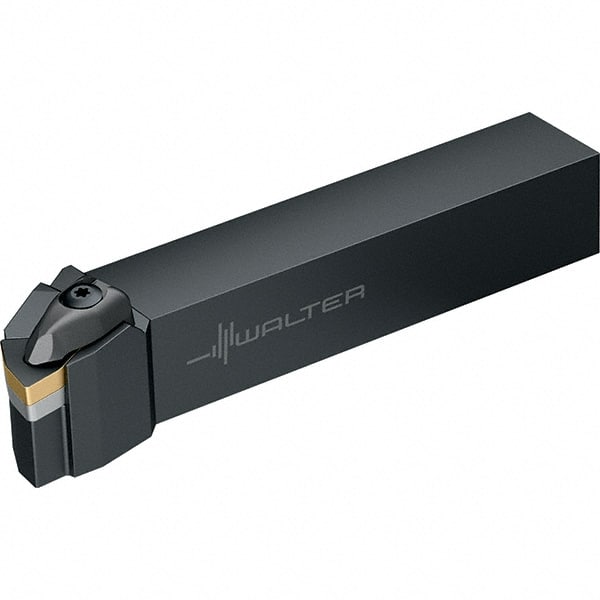

Walter - LH DWLN Negative Rake Indexable Turning Toolholder
Item #: 53050902
Brand: Walter
Model #: 5097498
Product Specifications
| Hand of Holder | Left Hand |
| Toolholder Style | DWLN |
| Rake | Negative |
| Series | Walter Turn |
| Shank Width (Decimal Inch) | 1.0000 |
| Shank Height (Decimal Inch) | 1.0000 |
| Overall Length (Decimal Inch) | 6.0000 |
| Insert Compatibility | WN..0604..; WN..33.. |
| Multi-Use Tool | No |
| Insert Holding Method | Hole & Top Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2500 |
| Head Length (Decimal Inch) | 1.9500 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Width (mm) | 6.50 |
| Insert Width (Decimal Inch) | 0.2560 |
