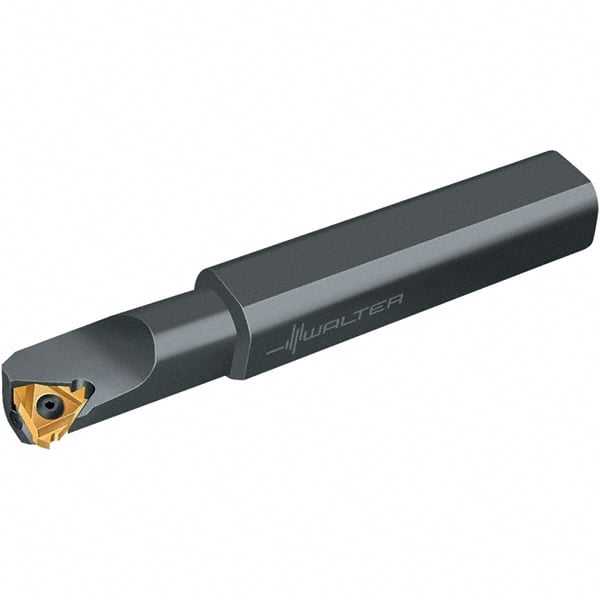

Walter - Internal Thread, Left Hand Cut, 5/8" Shank Width x 0.58" Shank Height Indexable Threading Toolholder - 6" OAL, NTSI..-16 Insert Compatibility, S..-NTS-I Toolholder
Item #: 53051850
Brand: Walter
Model #: 5029275
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal |
| Hand of Holder | Left Hand |
| Shank Width/Diameter (Decimal Inch) | 0.6250 |
| Shank Height (Decimal Inch) | 0.5800 |
| Overall Length (Decimal Inch) | 6.0000 |
| Insert Compatibility | NTSI..-16 |
| Toolholder Style | S..-NTS-I |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Center to Cutting Edge (Decimal Inch) | 0.4600 |
| Head Length (Decimal Inch) | 1.2500 |
| Shank Length (Decimal Inch) | 4.7500 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
