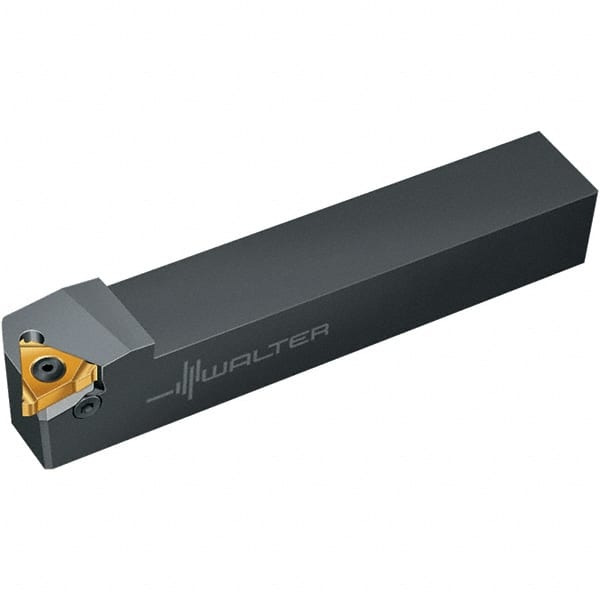

Walter - External Thread, Left Hand Cut, 1/2" Shank Width x 1/2" Shank Height Indexable Threading Toolholder - 3-1/4" OAL, NTSE..-16 Insert Compatibility, NTS-SE Toolholder
Item #: 53051900
Brand: Walter
Model #: 5029259
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | External |
| Hand of Holder | Left Hand |
| Shank Width/Diameter (Decimal Inch) | 0.5000 |
| Shank Height (Decimal Inch) | 0.5000 |
| Overall Length (Decimal Inch) | 3.2500 |
| Insert Compatibility | NTSE..-16 |
| Toolholder Style | NTS-SE |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.6300 |
| Head Length (Decimal Inch) | 0.8700 |
| Shank Length (Decimal Inch) | 2.3800 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
