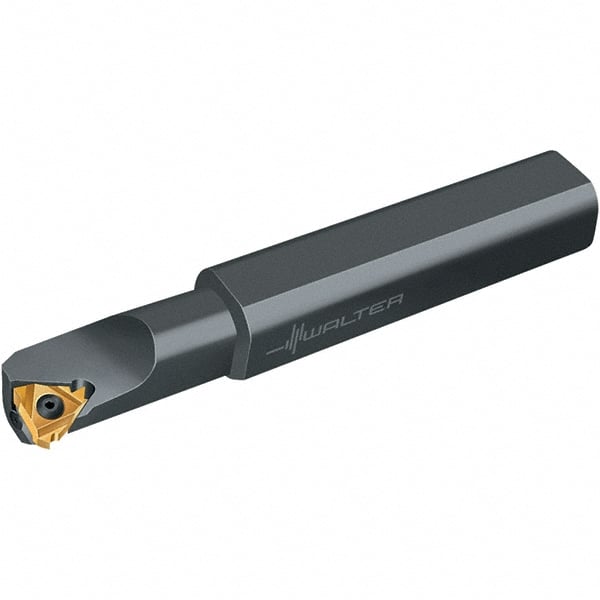

Walter - Internal Thread, Left Hand Cut, 32mm Shank Width x 29mm Shank Height Indexable Threading Toolholder - 250mm OAL, NTSI..-22 Insert Compatibility, S..-NTS-I Toolholder
Item #: 53051926
Brand: Walter
Model #: 5011622
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal |
| Hand of Holder | Left Hand |
| Shank Width/Diameter (mm) | 32.00 |
| Shank Width/Diameter (Decimal Inch) | 1.2598 |
| Shank Height (mm) | 29.00 |
| Shank Height (Decimal Inch) | 1.1417 |
| Overall Length (Decimal Inch) | 9.8425 |
| Overall Length (mm) | 250.00 |
| Insert Compatibility | NTSI..-22 |
| Toolholder Style | S..-NTS-I |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Center to Cutting Edge (mm) | 21.50 |
| Center to Cutting Edge (Decimal Inch) | 0.8465 |
| Head Length (mm) | 60.00 |
| Head Length (Decimal Inch) | 2.3622 |
| Shank Length (Decimal Inch) | 7.4803 |
| Minimum Bore Diameter (Decimal Inch) | 1.5354 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
