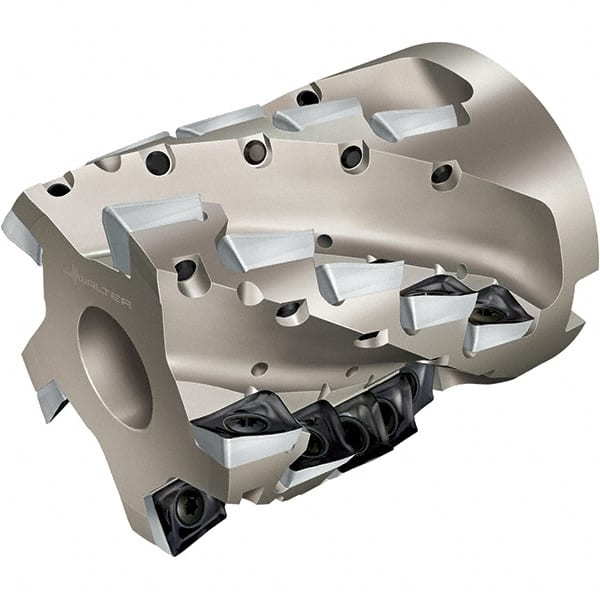

Walter - 25 Inserts, 80mm Cut Diam, 32mm Arbor Diam, 78mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 100mm High, AD.. 1807.. Insert Compatibility, Through Coolant, Series Xtra-tec
Item #: 53052395
Brand: Walter
Model #: 5677419
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 80.00 |
| Cutting Diameter (Decimal Inch) | 3.1496 |
| Arbor Hole Diameter (mm) | 32.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.2598 |
| Overall Height (mm) | 100.00 |
| Overall Height (Decimal Inch) | 3.9370 |
| Insert Compatibility | AD.. 1807.. |
| Series | Xtra-tec |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 78.00 |
| Maximum Depth of Cut (Decimal Inch) | 3.0709 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 25 |
| Insert Holding Method | Screw |
| Cutter Style | F4338 |
| Number of Flutes | 5 |
| Keyway Width (mm) | 8.00 |
| Keyway Width (Decimal Inch) | 0.3150 |
| Minimum Insert Radius (Decimal Inch) | 0.0472 |
| Complete Insert Compatibility | ADGT 1807PER-D51; ADGT 1807PER-D56; ADMT 180712R-D56; ADMT 180712R-F56 |
