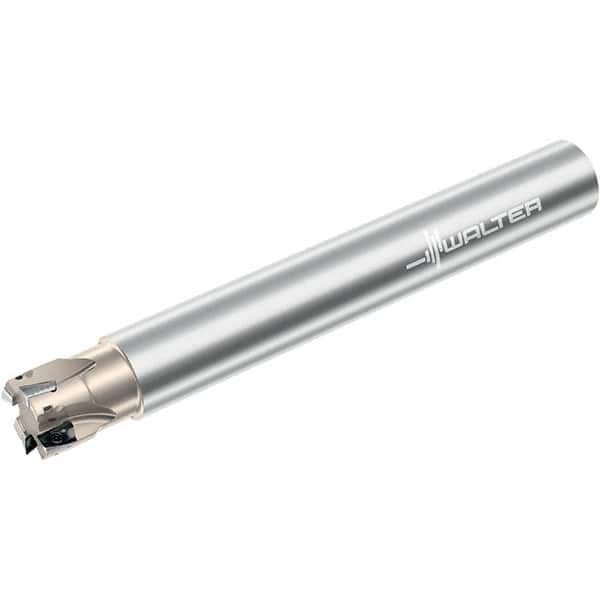

Walter - 32mm Cut Diam, 15mm Max Depth of Cut, 32mm Shank Diam, 250mm OAL, Indexable Square Shoulder End Mill - Multiple Insert Styles, Cylindrical Shank, 90° Lead Angle, Through Coolant, Series Xtra-tec
Item #: 53052866
Brand: Walter
Model #: 6262798
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 32.00 |
| Cutting Diameter (Decimal Inch) | 1.2598 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Overall Length/Projection (mm) | 250.00 |
| Overall Length/Projection (Decimal Inch) | 9.8425 |
| Lead Angle | 90 |
| Series | Xtra-tec |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 15.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5906 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | F4042 |
| Number of Flutes | 3 |
| Head Length (mm) | 38.00 |
| Head Length (Decimal Inch) | 1.4961 |
| Weldon Flat | No |
| Insert Compatibility | ADGT 160616R-D67; ADGT 160630R-D67; ADGT 1606PER-D51; ADGT 1606PER-D56; ADGT 1606PER-D67; ADGT 1606PER-F56; ADGT 1606PER-G77; ADHT 160616R-G88; ADHT 160625R-G88; ADHT 160630R-G88; ADHT 160640R-G88; ADHT 1606PER-G88; ADKT1606PER-F56; ADMT 160608R-D56; ADMT |
| Shank Length (Decimal Inch) | 8.3465 |
| Shank Length (mm) | 212.00 |
