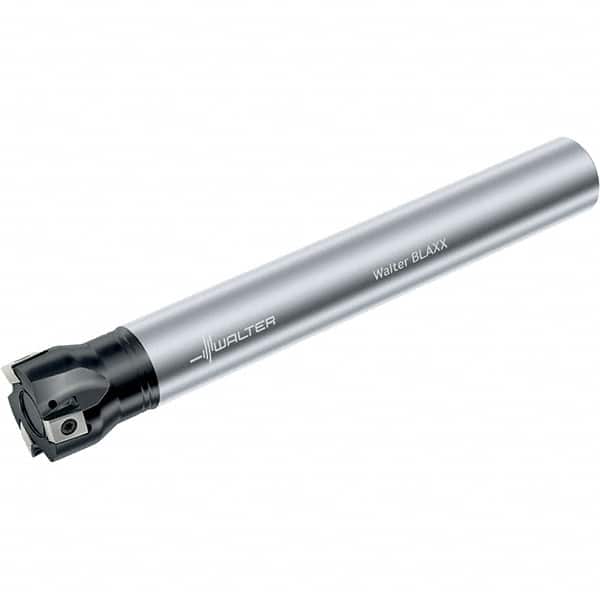

Walter - 40mm Cut Diam, 12mm Max Depth of Cut, 32mm Shank Diam, 250mm OAL, Indexable Square Shoulder End Mill - Multiple Insert Styles, Cylindrical Shank, 90° Lead Angle, Through Coolant, Series Blaxx
Item #: 53053021
Brand: Walter
Model #: 6195018
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Cutting Diameter (Decimal Inch) | 1.5748 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Overall Length/Projection (mm) | 250.00 |
| Overall Length/Projection (Decimal Inch) | 9.8425 |
| Lead Angle | 90 |
| Series | Blaxx |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 12.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4724 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | F5141 |
| Number of Flutes | 3 |
| Head Length (mm) | 44.00 |
| Head Length (Decimal Inch) | 1.7323 |
| Weldon Flat | No |
| Insert Compatibility | LNHU 130608R-L55T; LNHU 130608R-L85T; LNHU 130612R-L55T; LNHU 130616R-L55T; LNHU 130620R-L55T; LNHU 130625R-L55T; LNHU 130630R-L55T; LNHU 130632R-L55T |
| Shank Length (Decimal Inch) | 8.1102 |
| Shank Length (mm) | 206.00 |
| Maximum RPM | 10000 |
