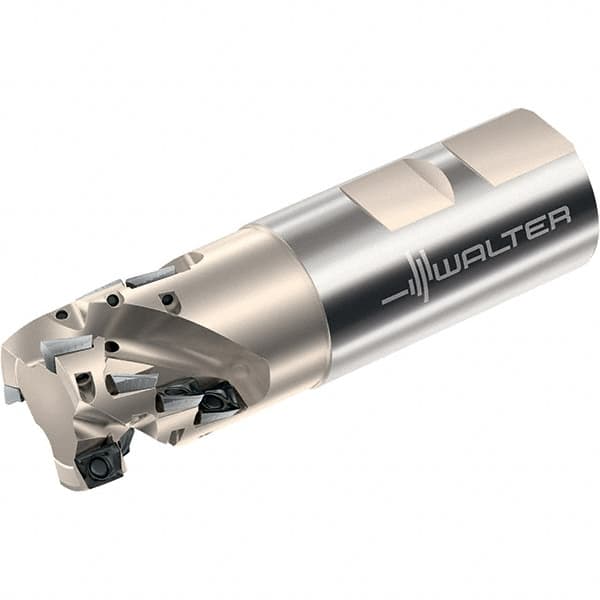

Walter - 3/4" Cut Diam, 1.181" Max Depth of Cut, 3/4" Shank Diam, 3.78" OAL, Indexable Square Shoulder Helical End Mill - Multiple Insert Styles, Weldon Shank, 90° Lead Angle, Through Coolant, Series Xtra-tec
Item #: 53053468
Brand: Walter
Model #: 5335539
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.7500 |
| Cutting Diameter (Inch) | 3/4 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Overall Length/Projection (Decimal Inch) | 3.7800 |
| Lead Angle | 90 |
| Series | Xtra-tec |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 1.1810 |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Cutter Style | F4038 |
| Number of Flutes | 1 |
| Head Length (Decimal Inch) | 1.7700 |
| Weldon Flat | Yes |
| Insert Compatibility | ADGT 0803PER-D51; ADGT 0803PER-D56; ADGT 0803PER-F56; ADHT 0803PER-G88; ADKT0803PER-F56; ADMT 080302R-F56; ADMT 080304R-D56; ADMT 080304R-F56; ADMT 080304R-G56; ADMT 080308R-F56; ADMT 080312R-F56; ADMT 080316R-F56; ADMT 080320R-F56; ADMT 080325R-F56 |
| Shank Length (Decimal Inch) | 2.0100 |
