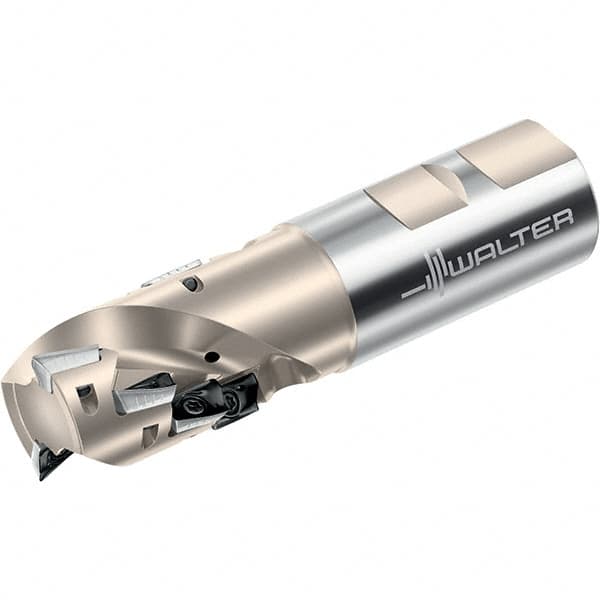

Walter - 2" Cut Diam, 3.543" Max Depth of Cut, 1-1/2" Shank Diam, Indexable Square Shoulder Helical End Mill - Multiple Insert Styles, Weldon Shank, 90° Lead Angle, Through Coolant
Item #: 53053492
Brand: Walter
Model #: 5197297
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Cutting Diameter (Inch) | 2 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Lead Angle | 90 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 3.5430 |
| Number of Cutter Inserts | 18 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Cutter Style | F4238 |
| Number of Flutes | 3 |
| Head Length (Decimal Inch) | 4.5280 |
| Insert Compatibility | ADGT 1606PER-D51; ADGT 1606PER-D56; ADGT 1606PER-F56; ADHT 160616R-G88; ADHT 160625R-G88; ADHT 160630R-G88; ADHT 160640R-G88; ADHT 1606PER-G88; ADKT1606PER-F56; ADMT 160608R-D56; ADMT 160608R-F56; ADMT 160608R-G56; ADMT 160612R-F56; ADMT 160616R-F56; ADMT |
