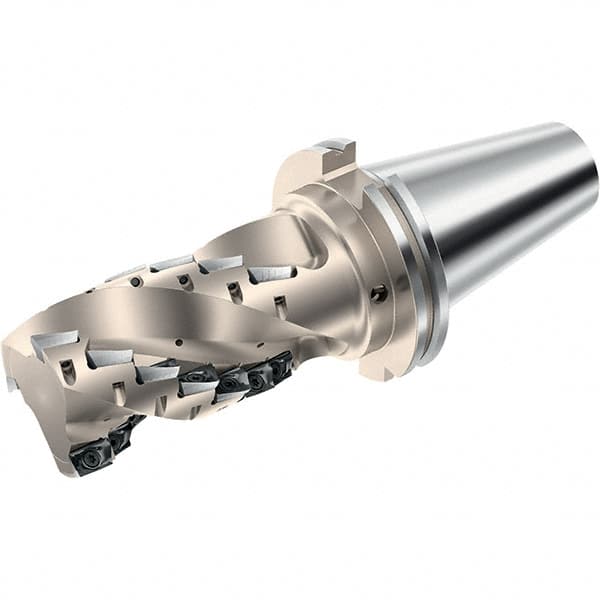

Walter - 2-1/2" Cut Diam, 3.898" Max Depth of Cut, 5.906" OAL, Indexable Square Shoulder Helical End Mill - Multiple Insert Styles, CAT 50 Taper Shank, 90° Lead Angle, Through Coolant, Series Xtra-tec
Item #: 53053500
Brand: Walter
Model #: 5197295
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.5000 |
| Cutting Diameter (Inch) | 2-1/2 |
| Shank Type | Taper Shank |
| Shank Taper Size | CAT 50 |
| Overall Length/Projection (Decimal Inch) | 5.9060 |
| Lead Angle | 90 |
| Series | Xtra-tec |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 3.8980 |
| Number of Cutter Inserts | 28 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Cutter Style | F4238 |
| Number of Flutes | 4 |
| Head Length (Decimal Inch) | 5.1000 |
| Insert Compatibility | ADGT 1606PER-D51; ADGT 1606PER-D56; ADGT 1606PER-F56; ADHT 160616R-G88; ADHT 160625R-G88; ADHT 160630R-G88; ADHT 160640R-G88; ADHT 1606PER-G88; ADKT1606PER-F56; ADMT 160608R-D56; ADMT 160608R-F56; ADMT 160608R-G56; ADMT 160612R-F56; ADMT 160616R-F56; ADMT |
| Shank Length (Decimal Inch) | 4.0060 |
