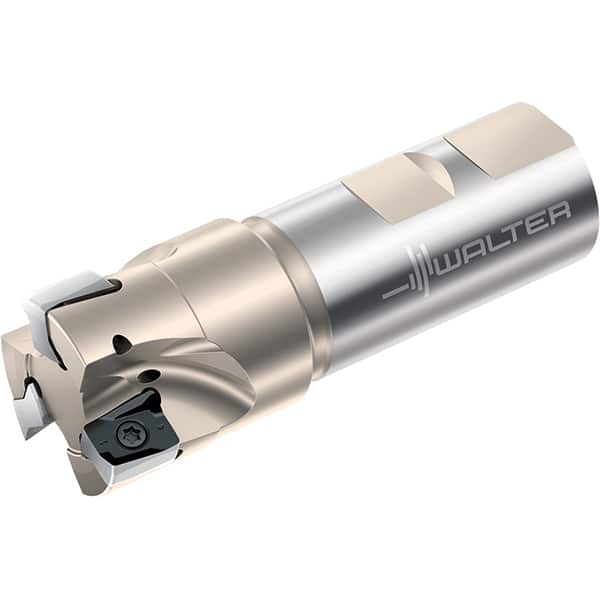

Walter - 40mm Cut Diam, 13mm Max Depth of Cut, 32mm Shank Diam, 110mm OAL, Indexable Square Shoulder End Mill - Multiple Insert Styles, Weldon Shank, 90° Lead Angle, Through Coolant, Series Xtra-tec
Item #: 53053609
Brand: Walter
Model #: 5108859
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Cutting Diameter (Decimal Inch) | 1.5748 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Overall Length/Projection (mm) | 110.00 |
| Overall Length/Projection (Decimal Inch) | 4.3307 |
| Lead Angle | 90 |
| Series | Xtra-tec |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 13.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5118 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | F4041 |
| Number of Flutes | 3 |
| Head Length (mm) | 49.00 |
| Head Length (Decimal Inch) | 1.9291 |
| Weldon Flat | Yes |
| Insert Compatibility | LNGX130708R-L55; LNGX130708R-L88; LNGX130712R-L55; LNGX130712R-L88; LNGX130716R-L55; LNGX130716R-L88; LNGX130720R-L55; LNGX130720R-L88; LNGX130725R-L55; LNGX130725R-L88; LNGX130730R-L55; LNGX130730R-L88 |
| Shank Length (Decimal Inch) | 2.4016 |
| Shank Length (mm) | 61.00 |
