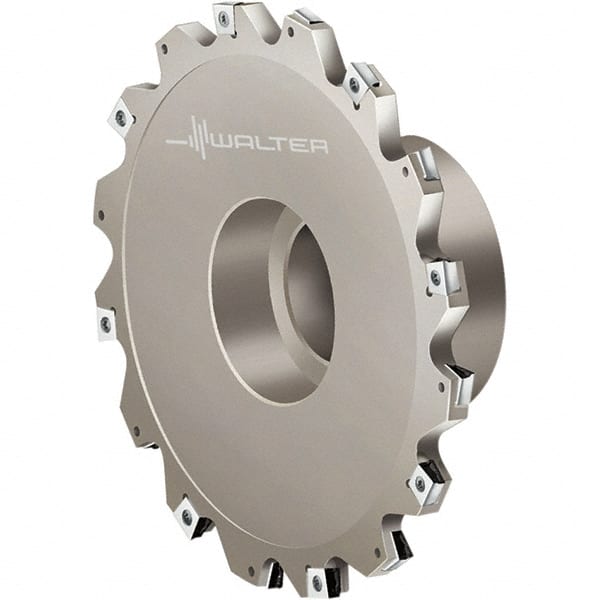

Walter - Shell Mount Connection, 0.3937" Cutting Width, 1.1811" Depth of Cut, 125mm Cutter Diam, 1.2598" Hole Diam, 6 Tooth Indexable Slotting Cutter - F4153.BN Toolholder, LN.U 100508 Insert, Right Hand Cutting Direction
Item #: 53054052
Brand: Walter
Model #: 5554810
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount |
| Cutting Width (mm) | 10.00 |
| Cutting Width (Decimal Inch) | 0.3937 |
| Maximum Depth of Cut (mm) | 30.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.1811 |
| Cutter Diameter (mm) | 125.00 |
| Cutter Diameter (Decimal Inch) | 4.9213 |
| Hole Diameter (mm) | 32.00 |
| Hole Diameter (Decimal Inch) | 1.2598 |
| Number of Teeth | 6 |
| Toolholder Style | F4153.BN |
| Series | Xtra-tec |
| Insert Style | LN.U 100508 |
| Staggered Tooth | No |
| Number of Cutter Inserts | 12 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Hub Diameter (mm) | 60.00 |
| Hub Diameter (Decimal Inch) | 2.3622 |
| Keyway Width (Decimal Inch) | 0.3150 |
| Keyway Width (mm) | 8.00 |
| Radius | No |
| Cutter Body Width (mm) | 50.00 |
| Cutter Body Width (Decimal Inch) | 1.9685 |
| Manufacturers Catalog Number | F4153.BN32.125.Z06.10R |
| Complete Insert Compatibility1 | LNHU100508-B57T; LNHU100508-F57T; LNMU100508-B57T; LNMU100508-F57T |
