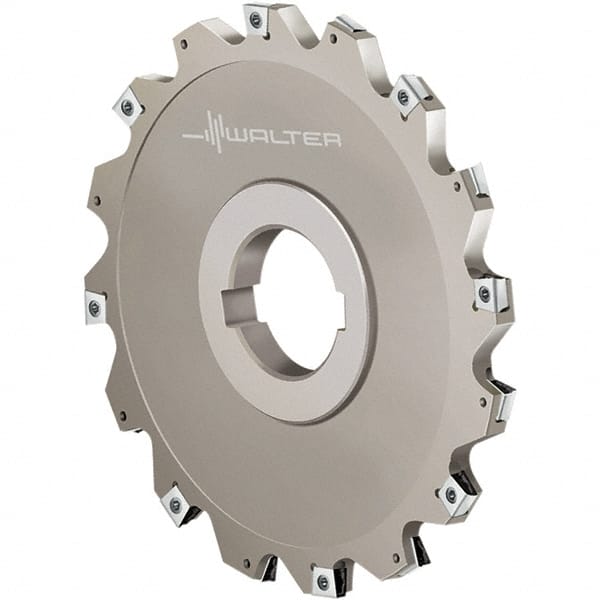

Walter - Arbor Hole Connection, 0.7087" Cutting Width, 0.4724" Depth of Cut, 80mm Cutter Diam, 1-1/16" Hole Diam, 4 Tooth Indexable Slotting Cutter - F4153.B Toolholder, LN.U 080304 Insert, Right Hand Cutting Direction
Item #: 53055620
Brand: Walter
Model #: 5325248
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 18.00 |
| Cutting Width (Decimal Inch) | 0.7087 |
| Maximum Depth of Cut (mm) | 12.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4724 |
| Cutter Diameter (mm) | 80.00 |
| Cutter Diameter (Decimal Inch) | 3.1496 |
| Hole Diameter (mm) | 27.00 |
| Hole Diameter (Decimal Inch) | 1.0630 |
| Number of Teeth | 4 |
| Toolholder Style | F4153.B |
| Series | Xtra-tec |
| Insert Style | LN.U 080304 |
| Staggered Tooth | No |
| Number of Cutter Inserts | 8 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Hub Diameter (mm) | 42.00 |
| Hub Diameter (Decimal Inch) | 1.6535 |
| Keyway Width (Decimal Inch) | 0.2756 |
| Keyway Width (mm) | 7.00 |
| Radius | No |
| Manufacturers Catalog Number | F4153.B27.080.Z04.06 |
| Complete Insert Compatibility1 | LNHU080304-B57T; LNHU080304-F57T; LNMU080304-B57T; LNMU080304-F57T |
