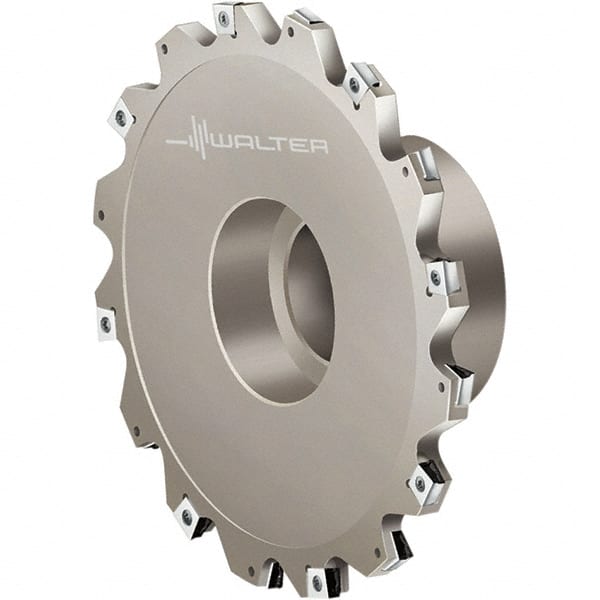

Walter - Shell Mount Connection, 0.3937" Cutting Width, 1.5748" Depth of Cut, 160mm Cutter Diam, 1.5748" Hole Diam, 7 Tooth Indexable Slotting Cutter - F4153.BN Toolholder, LN.U 100508 Insert, Right Hand Cutting Direction
Item #: 53056081
Brand: Walter
Model #: 5554811
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount |
| Cutting Width (mm) | 10.00 |
| Cutting Width (Decimal Inch) | 0.3937 |
| Maximum Depth of Cut (mm) | 40.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.5748 |
| Cutter Diameter (mm) | 160.00 |
| Cutter Diameter (Decimal Inch) | 6.2992 |
| Hole Diameter (mm) | 40.00 |
| Hole Diameter (Decimal Inch) | 1.5748 |
| Number of Teeth | 7 |
| Toolholder Style | F4153.BN |
| Series | Xtra-tec |
| Insert Style | LN.U 100508 |
| Staggered Tooth | No |
| Number of Cutter Inserts | 14 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Hub Diameter (mm) | 75.00 |
| Hub Diameter (Decimal Inch) | 2.9528 |
| Keyway Width (Decimal Inch) | 0.3937 |
| Keyway Width (mm) | 10.00 |
| Radius | No |
| Cutter Body Width (mm) | 50.00 |
| Cutter Body Width (Decimal Inch) | 1.9685 |
| Manufacturers Catalog Number | F4153.BN40.160.Z07.10R |
| Complete Insert Compatibility1 | LNHU100508-B57T; LNHU100508-F57T; LNMU100508-B57T; LNMU100508-F57T |
