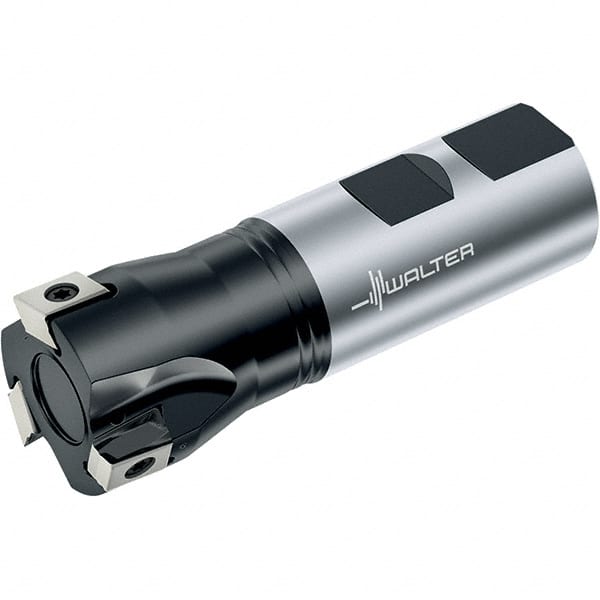

Walter - 1-1/2" Cut Diam, 0.48" Max Depth of Cut, 1-1/2" Shank Diam, 4-1/2" OAL, Indexable Square Shoulder End Mill - Multiple Insert Styles, Weldon Shank, 90° Lead Angle, Through Coolant, Series Blaxx
Item #: 53057469
Brand: Walter
Model #: 6197424
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Cutting Diameter (Inch) | 1-1/2 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Overall Length/Projection (Decimal Inch) | 4.5000 |
| Lead Angle | 90 |
| Series | Blaxx |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.4800 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | F5141 |
| Number of Flutes | 4 |
| Head Length (Decimal Inch) | 1.8110 |
| Weldon Flat | Yes |
| Insert Compatibility | LNHU 130608R-L55T; LNHU 130608R-L85T; LNHU 130612R-L55T; LNHU 130616R-L55T; LNHU 130620R-L55T; LNHU 130625R-L55T; LNHU 130630R-L55T; LNHU 130632R-L55T |
| Shank Length (Decimal Inch) | 2.6890 |
