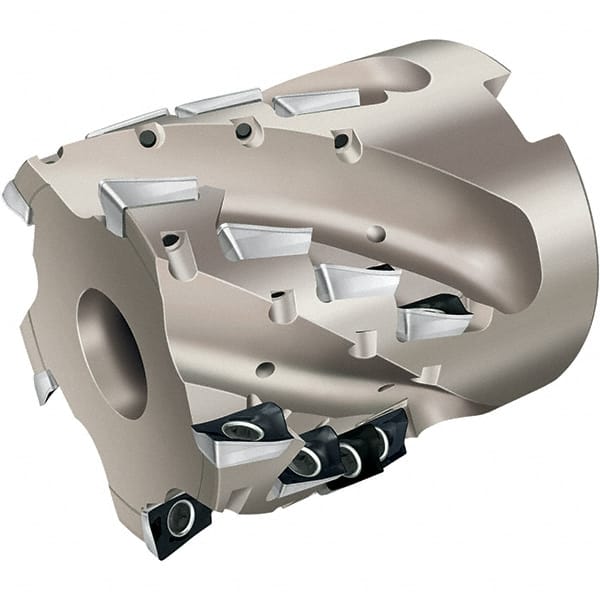

Walter - 20 Inserts, 63mm Cut Diam, 22mm Arbor Diam, 43mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 70mm High, AD.. 1204.. Insert Compatibility, Through Coolant, Series Xtra-tec
Item #: 53057584
Brand: Walter
Model #: 5084988
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 63.00 |
| Cutting Diameter (Decimal Inch) | 2.4803 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Overall Height (mm) | 70.00 |
| Overall Height (Decimal Inch) | 2.7559 |
| Insert Compatibility | AD.. 1204.. |
| Series | Xtra-tec |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 43.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.6929 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 20 |
| Insert Holding Method | Screw |
| Cutter Style | F4138 |
| Number of Flutes | 5 |
| Keyway Width (mm) | 6.00 |
| Keyway Width (Decimal Inch) | 0.2362 |
| Minimum Insert Radius (Decimal Inch) | 0.0157 |
| Complete Insert Compatibility | ADGT 120416R-D67; ADGT 120430R-D67; ADGT 1204PER-D51; ADGT 1204PER-D56; ADGT 1204PER-D67; ADGT 1204PER-F56; ADGT 1204PER-G77; ADHT 120416R-G88; ADHT 120425R-G88; ADHT 120430R-G88; ADHT 120440R-G88; ADHT 1204PER-G88; ADMT 120404R-F56; ADMT 120408R-D56; ADM |
