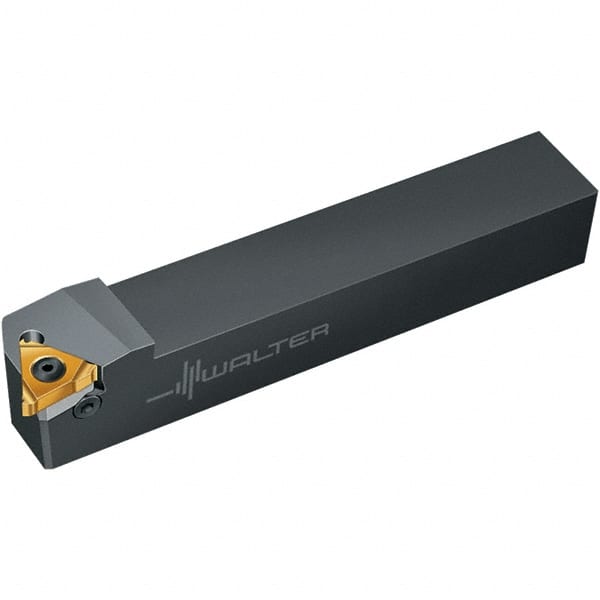

Walter - External Thread, Left Hand Cut, 32mm Shank Width x 32mm Shank Height Indexable Threading Toolholder - 175.7mm OAL, NTSE..-22 Insert Compatibility, NTS-SE Toolholder
Item #: 53058319
Brand: Walter
Model #: 5011572
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | External |
| Hand of Holder | Left Hand |
| Shank Width/Diameter (mm) | 32.00 |
| Shank Width/Diameter (Decimal Inch) | 1.2598 |
| Shank Height (mm) | 32.00 |
| Shank Height (Decimal Inch) | 1.2598 |
| Overall Length (Decimal Inch) | 6.9173 |
| Overall Length (mm) | 175.70 |
| Insert Compatibility | NTSE..-22 |
| Toolholder Style | NTS-SE |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (mm) | 32.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2598 |
| Head Length (mm) | 36.00 |
| Head Length (Decimal Inch) | 1.4173 |
| Shank Length (Decimal Inch) | 5.5000 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
