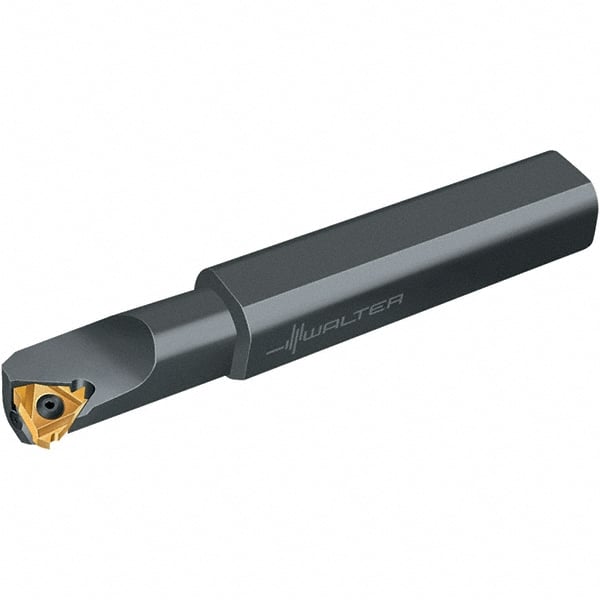

Walter - Internal Thread, Right Hand Cut, 16mm Shank Width x 15.2mm Shank Height Indexable Threading Toolholder - 150mm OAL, NTSI..-16 Insert Compatibility, S..-NTS-I Toolholder
Item #: 53058392
Brand: Walter
Model #: 5011601
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (mm) | 16.00 |
| Shank Width/Diameter (Decimal Inch) | 0.6299 |
| Shank Height (mm) | 15.20 |
| Shank Height (Decimal Inch) | 0.5984 |
| Overall Length (Decimal Inch) | 5.9055 |
| Overall Length (mm) | 150.00 |
| Insert Compatibility | NTSI..-16 |
| Toolholder Style | S..-NTS-I |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Center to Cutting Edge (mm) | 11.30 |
| Center to Cutting Edge (Decimal Inch) | 0.4449 |
| Head Length (mm) | 32.00 |
| Head Length (Decimal Inch) | 1.2598 |
| Shank Length (Decimal Inch) | 4.6457 |
| Minimum Bore Diameter (Decimal Inch) | 0.7874 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
