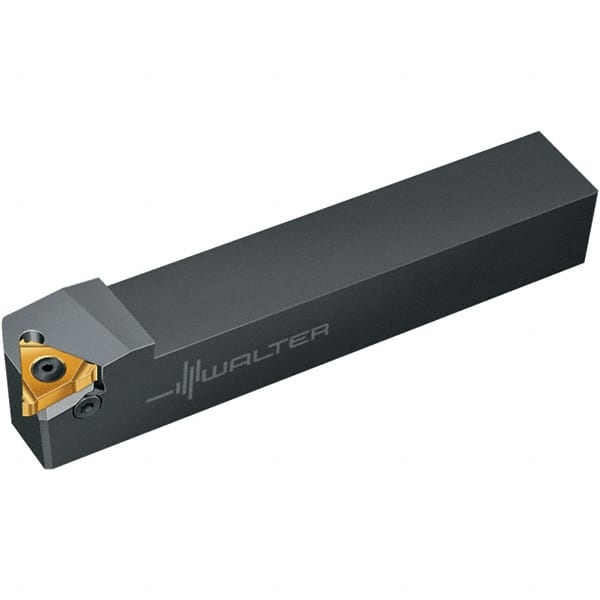

Walter - External Thread, Left Hand Cut, 1-1/4" Shank Width x 1-1/4" Shank Height Indexable Threading Toolholder - 7" OAL, NTSE..-16 Insert Compatibility, NTS-SE Toolholder
Item #: 53058541
Brand: Walter
Model #: 5029263
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | External |
| Hand of Holder | Left Hand |
| Shank Width/Diameter (Decimal Inch) | 1.2500 |
| Shank Height (Decimal Inch) | 1.2500 |
| Overall Length (Decimal Inch) | 7.0000 |
| Insert Compatibility | NTSE..-16 |
| Toolholder Style | NTS-SE |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2500 |
| Head Length (Decimal Inch) | 1.1800 |
| Shank Length (Decimal Inch) | 5.8200 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
