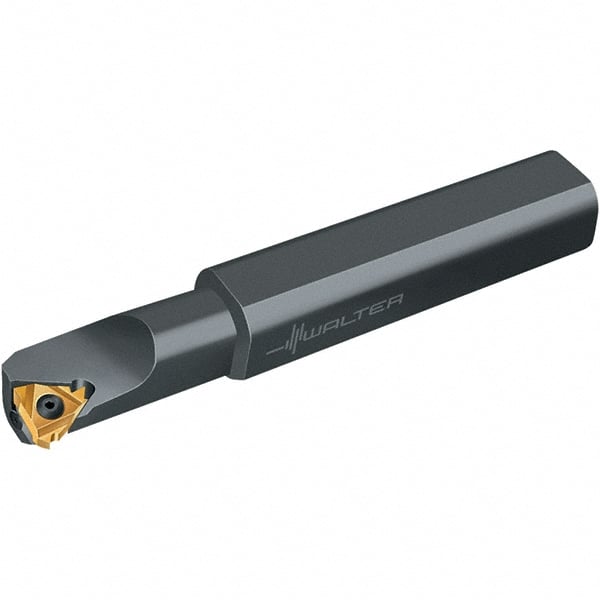

Walter - Internal Thread, Right Hand Cut, 1-1/4" Shank Width x 1.12" Shank Height Indexable Threading Toolholder - 10" OAL, NTSI..-16 Insert Compatibility, S..-NTS-I Toolholder
Item #: 53058707
Brand: Walter
Model #: 5029293
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (Decimal Inch) | 1.2500 |
| Shank Height (Decimal Inch) | 1.1200 |
| Overall Length (Decimal Inch) | 10.0000 |
| Insert Compatibility | NTSI..-16 |
| Toolholder Style | S..-NTS-I |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Center to Cutting Edge (Decimal Inch) | 0.6500 |
| Head Length (Decimal Inch) | 2.5000 |
| Shank Length (Decimal Inch) | 7.5000 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
