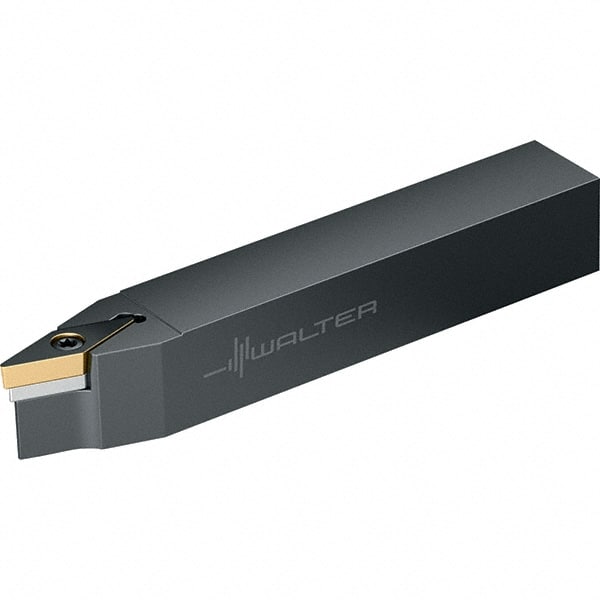

Walter - SVVB, Neutral Cut, 3/4" Shank Height x 3/4" Shank Width, Neutral Rake Indexable Turning Toolholder - 4-1/2" OAL, VB/C..1604.., VB/C..33.. Insert Compatibility, Series Walter Turn
Item #: 53059234
Brand: Walter
Model #: 5028506
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Neutral |
| Toolholder Style | SVVB |
| Rake | Neutral |
| Series | Walter Turn |
| Shank Width (Decimal Inch) | 0.7500 |
| Shank Height (Decimal Inch) | 0.7500 |
| Overall Length (Decimal Inch) | 4.5000 |
| Insert Compatibility | VB/C..1604..; VB/C..33.. |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.3950 |
| Head Length (Decimal Inch) | 1.2400 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Width (mm) | 16.61 |
| Insert Width (Decimal Inch) | 0.6540 |
