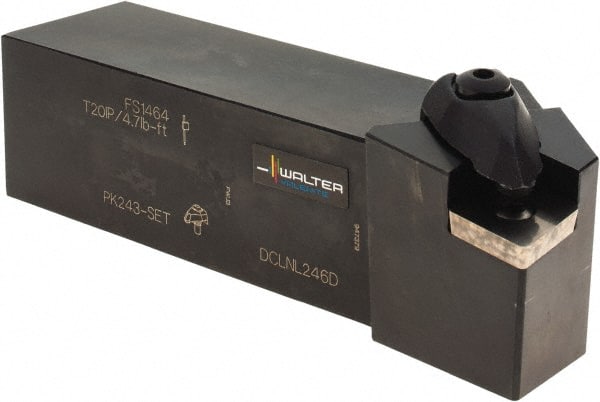

Walter - DCLN, Left Hand Cut, 38.1mm Shank Height x 38.1mm Shank Width, Negative Rake Indexable Turning Toolholder - 152.4mm OAL, CN.. 1906.., CN.. 64.. Insert Compatibility, Series Walter Turn
Item #: 53059689
Brand: Walter
Model #: 5097510
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | DCLN |
| Rake | Negative |
| Series | Walter Turn |
| Shank Width (mm) | 38.10 |
| Shank Width (Decimal Inch) | 1.5000 |
| Shank Height (mm) | 38.10 |
| Shank Height (Decimal Inch) | 1.5000 |
| Overall Length (mm) | 152.40 |
| Overall Length (Decimal Inch) | 6.0000 |
| Insert Compatibility | CN.. 1906..; CN.. 64.. |
| Multi-Use Tool | No |
| Insert Holding Method | Hole & Top Clamp |
| Back of Bar to Cutting Edge (mm) | 50.80 |
| Back of Bar to Cutting Edge (Decimal Inch) | 2.0000 |
| Head Length (mm) | 43.18 |
| Head Length (Decimal Inch) | 1.7000 |
| Insert Inscribed Circle (Inch) | 3/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.7500 |
| Insert Width (mm) | 19.30 |
| Insert Width (Decimal Inch) | 0.7600 |
