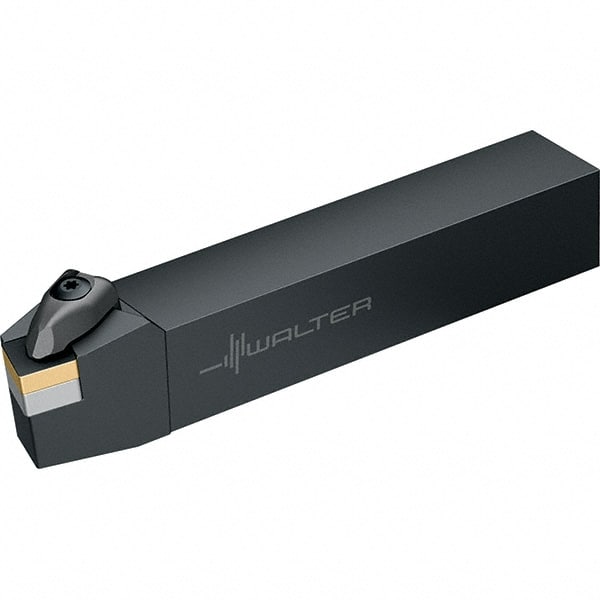

Walter - DSBN, Right Hand Cut, 40mm Shank Height x 40mm Shank Width, Negative Rake Indexable Turning Toolholder - 250mm OAL, SN..1906.. Insert Compatibility, Series Walter Turn
Item #: 53060125
Brand: Walter
Model #: 5101477
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | DSBN |
| Rake | Negative |
| Series | Walter Turn |
| Shank Width (mm) | 40.00 |
| Shank Width (Decimal Inch) | 1.5748 |
| Shank Height (mm) | 40.00 |
| Shank Height (Decimal Inch) | 1.5748 |
| Overall Length (mm) | 250.00 |
| Overall Length (Decimal Inch) | 9.8425 |
| Insert Compatibility | SN..1906.. |
| Multi-Use Tool | No |
| Insert Holding Method | Hole & Top Clamp |
| Back of Bar to Cutting Edge (mm) | 35.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.3780 |
| Head Length (mm) | 46.50 |
| Head Length (Decimal Inch) | 1.8307 |
| Insert Inscribed Circle (Decimal Inch) | 0.7500 |
