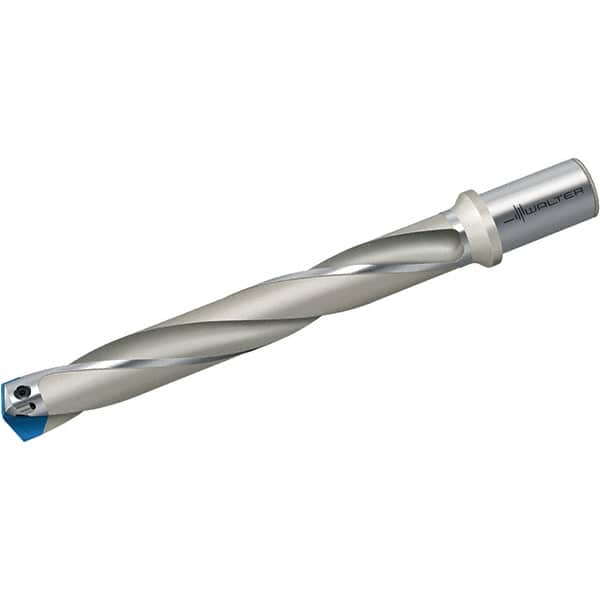

Walter - 14mm Diam, 7xD, 101mm Max Depth, 20mm Shank Diam, 182mm OAL, Replaceable Tip Drill - P6001-D14..R, P6002-D14..R, P6003-D14..R, P6004-D14..R Insert, B 4017 Toolholder, Series Xtra-tec
Item #: 53070108
Brand: Walter
Model #: 5044340
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | Xtra-tec |
| Maximum Drill Diameter (mm) | 14.00 |
| Maximum Drill Diameter (Decimal Inch) | 0.5512 |
| Drill Depth by Diameter Ratio | 7xD |
| Maximum Drill Depth (Decimal Inch) | 3.9764 |
| Maximum Drill Depth (mm) | 101.00 |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Insert Style | P6001-D14..R; P6002-D14..R; P6003-D14..R; P6004-D14..R |
| Toolholder Style | B 4017 |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Body Length (mm) | 132.00 |
| Body Length (Decimal Inch) | 5.1969 |
| Overall Length (mm) | 182.00 |
| Overall Length (Decimal Inch) | 7.1654 |
| Shank Length (mm) | 50.00 |
| Shank Length (Decimal Inch) | 1.9685 |
