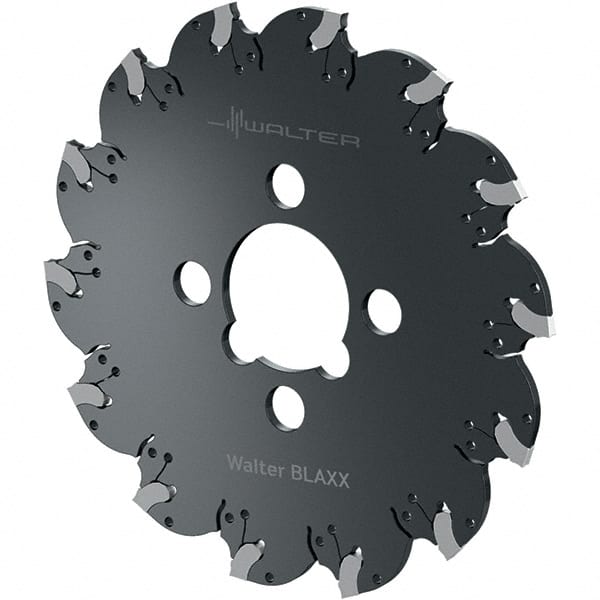

Walter - Arbor Hole Connection, 0.0591" Cutting Width, 33mm Depth of Cut, 125mm Cutter Diam, 4.9213" Hole Diam, 11 Tooth Indexable Slotting Cutter - F5055.B Toolholder, SX Insert, Right Hand Cutting Direction
Item #: 53078168
Brand: Walter
Model #: 6422008
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 1.50 |
| Cutting Width (Decimal Inch) | 0.0591 |
| Maximum Depth of Cut (mm) | 33.00 |
| Cutter Diameter (mm) | 125.00 |
| Cutter Diameter (Decimal Inch) | 4.9213 |
| Hole Diameter (mm) | 125.00 |
| Hole Diameter (Decimal Inch) | 4.9213 |
| Number of Teeth | 11 |
| Toolholder Style | F5055.B |
| Series | Blaxx |
| Insert Style | SX |
| Staggered Tooth | No |
| Number of Cutter Inserts | 11 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Keyway Width (Decimal Inch) | 0.3150 |
| Keyway Width (mm) | 8.00 |
| Radius | No |
| Manufacturers Catalog Number | F5055.B32.125.Z11.1,5 |
