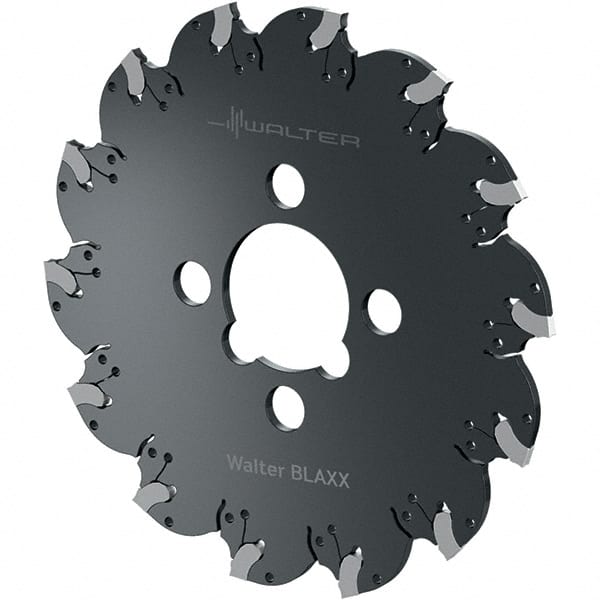

Walter - Arbor Hole Connection, 0.1181" Cutting Width, 3.2677" Depth of Cut, 250mm Cutter Diam, 1.5748" Hole Diam, 24 Tooth Indexable Slotting Cutter - F5055.B Toolholder, SX-3E Insert, Right Hand Cutting Direction
Item #: 53078259
Brand: Walter
Model #: 6406426
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Maximum Depth of Cut (mm) | 83.00 |
| Maximum Depth of Cut (Decimal Inch) | 3.2677 |
| Cutter Diameter (mm) | 250.00 |
| Cutter Diameter (Decimal Inch) | 9.8425 |
| Hole Diameter (mm) | 40.00 |
| Hole Diameter (Decimal Inch) | 1.5748 |
| Number of Teeth | 24 |
| Toolholder Style | F5055.B |
| Series | Blaxx |
| Insert Style | SX-3E |
| Staggered Tooth | No |
| Number of Cutter Inserts | 24 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Keyway Width (Decimal Inch) | 0.3937 |
| Keyway Width (mm) | 10.00 |
| Radius | No |
| Cutter Body Width (mm) | 2.40 |
| Cutter Body Width (Decimal Inch) | 0.0945 |
| Manufacturers Catalog Number | F5055.B40.250.Z24.3,0 |
| Complete Insert Compatibility1 | SX-3E300N02-CE4; SX-3E300N02-CF5; SX-3E300N02-CF6 |
