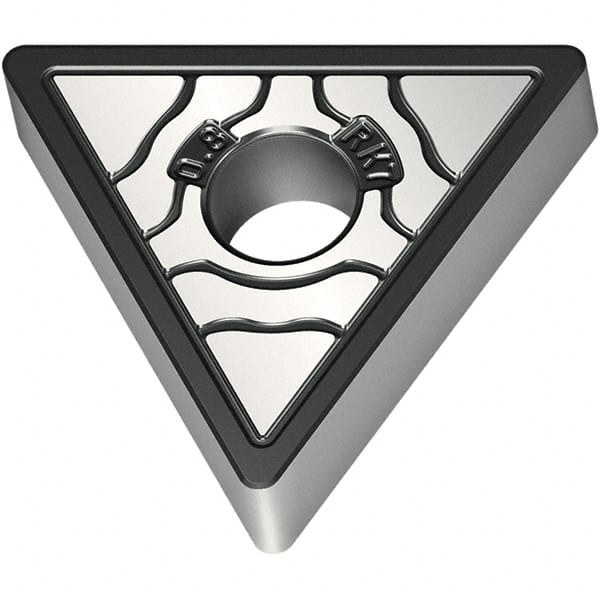

Walter - TNMA333 RK7 Grade WKK10S Carbide Turning Insert - TiCN/Al2O3/TiCN Finish, 60° Triangle, 3/8" Inscr Circle, 3/16" Thick, 3/64" Corner Radius
Item #: 53080305
Brand: Walter
Model #: 6435052
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TNMA |
| Insert Size | 333 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Manufacturer's Grade | WKK10S |
| Coating | TiCN/Al2O3/TiCN |
| Material Grade | K10/H30 |
| Chip Breaker | RK7 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| ISO Number | TNMA333 |
| Rake | Negative |
| Relief Angle | 0 |
| Coating Process | CVD |
| Manufacturers Catalog Number | TNMA160412-RK7 |
| Primary Workpiece Material | K |
| Secondary Workpiece Material | H |
| Included Angle | 60 |
| Series | Tiger-tec Silver |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Insert Holding Method | Pin & Clamp |
| Multi Use Application | Turning |
| MultiUseTool | Yes |
| Shape | Triangle |
