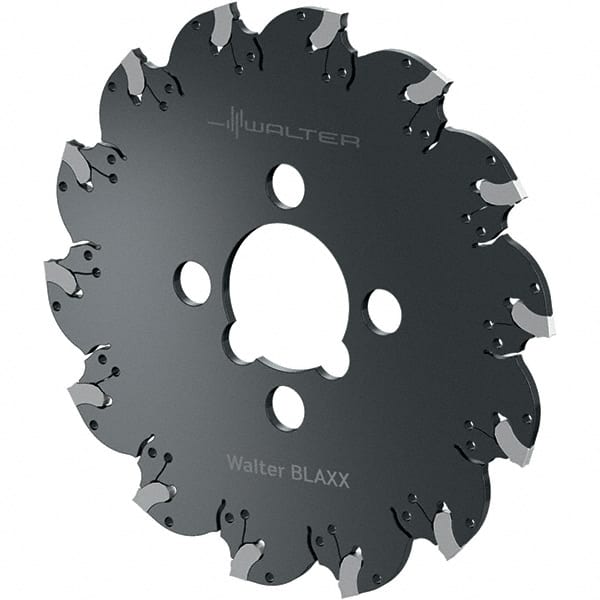

Walter - Arbor Hole Connection, 0.0591" Cutting Width, 19mm Depth of Cut, 80mm Cutter Diam, 0.6299" Hole Diam, 7 Tooth Indexable Slotting Cutter - F5055.B Toolholder, SX Insert, Right Hand Cutting Direction
Item #: 53083465
Brand: Walter
Model #: 6421995
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 1.50 |
| Cutting Width (Decimal Inch) | 0.0591 |
| Maximum Depth of Cut (mm) | 19.00 |
| Cutter Diameter (mm) | 80.00 |
| Cutter Diameter (Decimal Inch) | 3.1496 |
| Hole Diameter (mm) | 16.00 |
| Hole Diameter (Decimal Inch) | 0.6299 |
| Number of Teeth | 7 |
| Toolholder Style | F5055.B |
| Series | Blaxx |
| Insert Style | SX |
| Staggered Tooth | No |
| Number of Cutter Inserts | 7 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Keyway Width (Decimal Inch) | 0.1575 |
| Keyway Width (mm) | 4.00 |
| Radius | No |
| Manufacturers Catalog Number | F5055.B16.080.Z07.1,5 |
