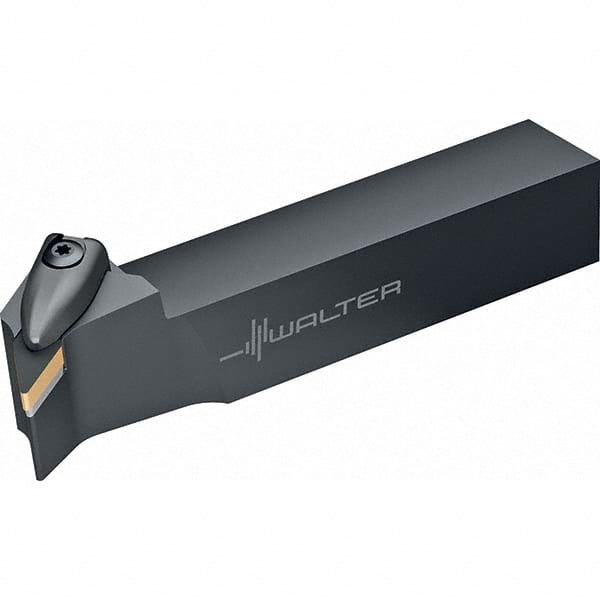

Walter - RH DVTN Negative Rake Indexable Turning Toolholder
Item #: 53090429
Brand: Walter
Model #: 6349857
Product Specifications
| Hand of Holder | Right Hand |
| Toolholder Style | DVTN |
| Rake | Negative |
| Series | Walter Turn |
| Shank Width (Decimal Inch) | 1.2500 |
| Shank Height (Decimal Inch) | 1.2500 |
| Overall Length (Decimal Inch) | 6.0000 |
| Insert Compatibility | VN..1604..; VN..33.. |
| Multi-Use Tool | No |
| Insert Holding Method | Hole & Top Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.5000 |
| Head Length (Decimal Inch) | 1.5400 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
