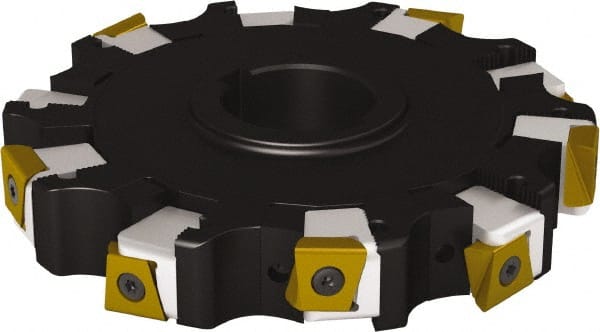

Seco - Arbor Hole Connection, 0.63" Cutting Width, 1.79" Depth of Cut, 152.4mm Cutter Diam, 1-1/2" Hole Diam, 10 Tooth Indexable Slotting Cutter - 335.25 Toolholder, LNHQ 1707, XNHQ 1707 Insert, Right Hand Cutting Direction
Item #: 53094496
Brand: Seco
Model #: 16388
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 16.00 |
| Cutting Width (Decimal Inch) | 0.6300 |
| Maximum Depth of Cut (mm) | 45.47 |
| Maximum Depth of Cut (Decimal Inch) | 1.7900 |
| Cutter Diameter (mm) | 152.40 |
| Cutter Diameter (Decimal Inch) | 6.0000 |
| Hole Diameter (mm) | 38.10 |
| Hole Diameter (Decimal Inch) | 1.5000 |
| Number of Teeth | 10 |
| Toolholder Style | 335.25 |
| Series | 335.25 |
| Insert Style | LNHQ 1707; XNHQ 1707 |
| Staggered Tooth | No |
| Number of Cutter Inserts | 10 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 4700 |
| Hub Diameter (mm) | 57.15 |
| Hub Diameter (Decimal Inch) | 2.2500 |
| Keyway Width (Decimal Inch) | 0.3750 |
| Radius | No |
| Cutter Body Width (mm) | 31.75 |
| Cutter Body Width (Decimal Inch) | 1.2500 |
| Weldon Flat | No |
| Manufacturers Catalog Number | 335.25-06.00-1620R |
| Complete Insert Compatibility1 | LNQH 1707-F40M-M13; XNHQ 1407-F40M-E10; XNHQ 1407-F40M-M11; XNHQ 1407-H25-E10; XNHQ 1407-MK2050-M11; XNHQ 1407-MP2500-M11; XNHQ 1707-F40M-E12; XNHQ 1707-F40M-M13; XNHQ 1707-H25-E12; XNHQ 1707-MK2050-M13; XNHQ 1707-MP2500-M13 |
