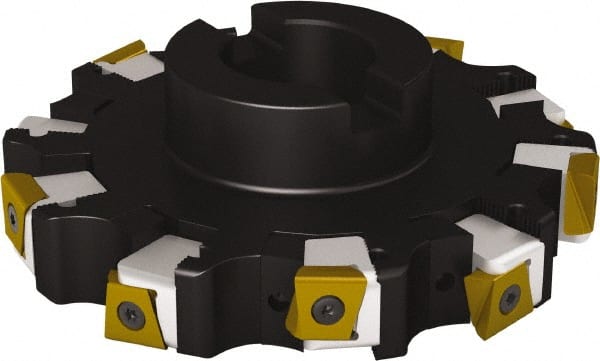

Seco - Shell Mount Connection, 0.6299" Cutting Width, 2-1/8" Depth of Cut, 200mm Cutter Diam, 1.5748" Hole Diam, 12 Tooth Indexable Slotting Cutter - R335.25 Toolholder, LNHQ 1707, XNHQ 1707 Insert, Right Hand Cutting Direction
Item #: 53095428
Brand: Seco
Model #: 85569
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount |
| Cutting Width (mm) | 16.00 |
| Cutting Width (Decimal Inch) | 0.6299 |
| Maximum Depth of Cut (mm) | 54.00 |
| Maximum Depth of Cut (Decimal Inch) | 2.1260 |
| Cutter Diameter (mm) | 200.00 |
| Cutter Diameter (Decimal Inch) | 7.8740 |
| Hole Diameter (mm) | 40.00 |
| Hole Diameter (Decimal Inch) | 1.5748 |
| Number of Teeth | 12 |
| Toolholder Style | R335.25 |
| Series | R335.25 |
| Insert Style | LNHQ 1707; XNHQ 1707 |
| Staggered Tooth | No |
| Number of Cutter Inserts | 12 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 4100 |
| Hub Diameter (mm) | 90.00 |
| Hub Diameter (Decimal Inch) | 3.5433 |
| Keyway Width (Decimal Inch) | 0.3937 |
| Keyway Width (mm) | 10.00 |
| Radius | No |
| Cutter Body Width (mm) | 50.00 |
| Cutter Body Width (Decimal Inch) | 1.9685 |
| Weldon Flat | No |
| Manufacturers Catalog Number | R335.25-200.2632.40-12R |
| Complete Insert Compatibility1 | LNQH 1707-F40M-M13; XNHQ 1407-F40M-E10; XNHQ 1407-F40M-M11; XNHQ 1407-H25-E10; XNHQ 1407-MK2050-M11; XNHQ 1407-MP2500-M11; XNHQ 1707-F40M-E12; XNHQ 1707-F40M-M13; XNHQ 1707-H25-E12; XNHQ 1707-MK2050-M13; XNHQ 1707-MP2500-M13 |
