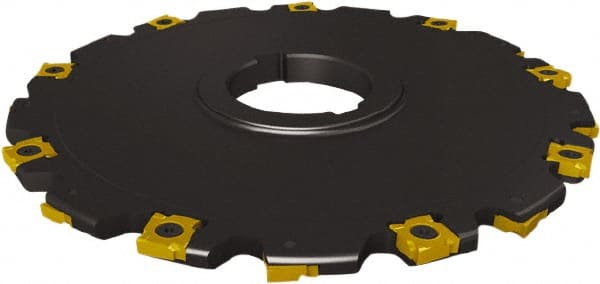

Seco - Arbor Hole Connection, 1/4" Cutting Width, 2.51" Depth of Cut, 203.2mm Cutter Diam, 1-1/2" Hole Diam, 9 Tooth Indexable Slotting Cutter - 335.19 Toolholder, SNHQ 1204L, SNHQ 1204R Insert, Right Hand Cutting Direction
Item #: 53095485
Brand: Seco
Model #: 82004
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 6.35 |
| Cutting Width (Decimal Inch) | 0.2500 |
| Maximum Depth of Cut (mm) | 63.75 |
| Maximum Depth of Cut (Decimal Inch) | 2.5100 |
| Cutter Diameter (mm) | 203.20 |
| Cutter Diameter (Decimal Inch) | 8.0000 |
| Hole Diameter (mm) | 38.10 |
| Hole Diameter (Decimal Inch) | 1.5000 |
| Number of Teeth | 9 |
| Toolholder Style | 335.19 |
| Series | R335.19 |
| Insert Style | SNHQ 1204L; SNHQ 1204R |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 18 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 8000 |
| Hub Diameter (mm) | 69.85 |
| Hub Diameter (Decimal Inch) | 2.7500 |
| Keyway Width (Decimal Inch) | 0.3750 |
| Radius | No |
| Cutter Body Width (mm) | 12.70 |
| Cutter Body Width (Decimal Inch) | 0.5000 |
| Weldon Flat | No |
| Manufacturers Catalog Number | 335.19-08.00-0.25-9 |
| Complete Insert Compatibility2 | SNHQ 1204L-MM4500-M07; SNHQ 1204L-MP2500-M07; SNHQ 1204R-F30M-M07; SNHQ 1204R-F40M-M07; SNHQ 1204R-MM4500-M07; SNHQ 1204R-MP2500-M07 |
| Complete Insert Compatibility1 | SNHQ 1204L-F30M-M07; SNHQ 1204L-F40M-E05; SNHQ 1204L-F40M-M07; SNHQ 1204L-H25M-E05; SNHQ 1204R-F40M-E05; SNHQ 1204R-H25M-E05 |
