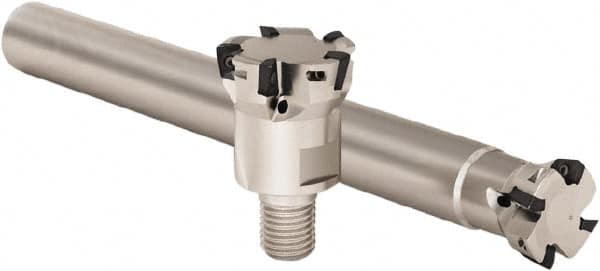

Seco - 3/4" Cut Diam, 0.236" Max Depth of Cut, 3/4" Shank Diam, Indexable Plunge End Mill - Cylindrical Shank, Multiple Insert Styles, R217.79 Toolholder Style, Through Coolant, Series Turbo 10
Item #: 53095535
Brand: Seco
Model #: 77201
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 3/4 |
| Cutting Diameter (Decimal Inch) | .7500 |
| Maximum Depth of Cut (Decimal Inch) | 0.2360 |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 0.75 |
| Insert Style | XOEX 10T304R-M06; XOEX 10T308R-M06; XOEX 10T312R-M06; XOEX 10T316R-M06; XOEX 10T320R-M06; XOEX 10T324R-M06; XOEX 10T331R-M06 |
| Toolholder Style | R217.79 |
| Series | Turbo 10 |
| Number of Flutes | 2 |
| Overall Length/Projection (Decimal Inch) | 4.8800 |
| Insert Holding Method | Screw |
| Weldon Flat | No |
| Through Coolant | Through Coolant |
| Maximum RPM | 26300 |
| ISO Number | R217.7900.750102A |
| Rake | Positive |
