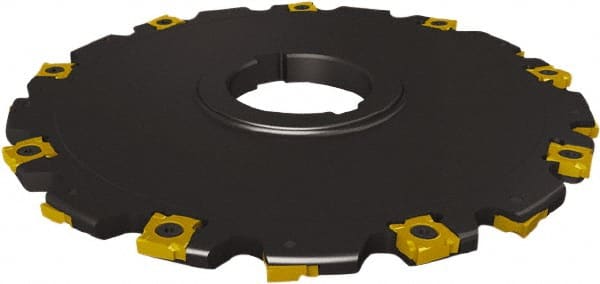

Seco - Arbor Hole Connection, 3/8" Cutting Width, 1.49" Depth of Cut, 127mm Cutter Diam, 1-1/4" Hole Diam, 6 Tooth Indexable Slotting Cutter - 335.19 Toolholder, SNHQ 1205L, SNHQ 1205R Insert, Right Hand Cutting Direction
Item #: 53096251
Brand: Seco
Model #: 82019
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 9.53 |
| Cutting Width (Decimal Inch) | 0.3750 |
| Maximum Depth of Cut (mm) | 37.85 |
| Maximum Depth of Cut (Decimal Inch) | 1.4900 |
| Cutter Diameter (mm) | 127.00 |
| Cutter Diameter (Decimal Inch) | 5.0000 |
| Hole Diameter (mm) | 31.75 |
| Hole Diameter (Decimal Inch) | 1.2500 |
| Number of Teeth | 6 |
| Toolholder Style | 335.19 |
| Series | R335.19 |
| Insert Style | SNHQ 1205L; SNHQ 1205R |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 12 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 6000 |
| Hub Diameter (mm) | 47.75 |
| Hub Diameter (Decimal Inch) | 1.8800 |
| Keyway Width (Decimal Inch) | 0.3120 |
| Radius | No |
| Cutter Body Width (mm) | 12.70 |
| Cutter Body Width (Decimal Inch) | 0.5000 |
| Weldon Flat | No |
| Manufacturers Catalog Number | 335.19-05.00-0.37-6 |
| Complete Insert Compatibility2 | SNHQ 1205L-MM4500-M07; SNHQ 1205L-MP2500-M07; SNHQ 1205R-F30M-M07; SNHQ 1205R-F40M-M07; SNHQ 1205R-MM4500-M07; SNHQ 1205R-MP2500-M07 |
| Complete Insert Compatibility1 | SNHQ 1205L-F30M-M07; SNHQ 1205L-F40M-E05; SNHQ 1205L-F40M-M07; SNHQ 1205L-H25M-E05; SNHQ 1205R-F40M-E05; SNHQ 1205R-H25M-E05 |
